PHOTOS (8)
Product Features
Durable Design for Maximum Efficiency

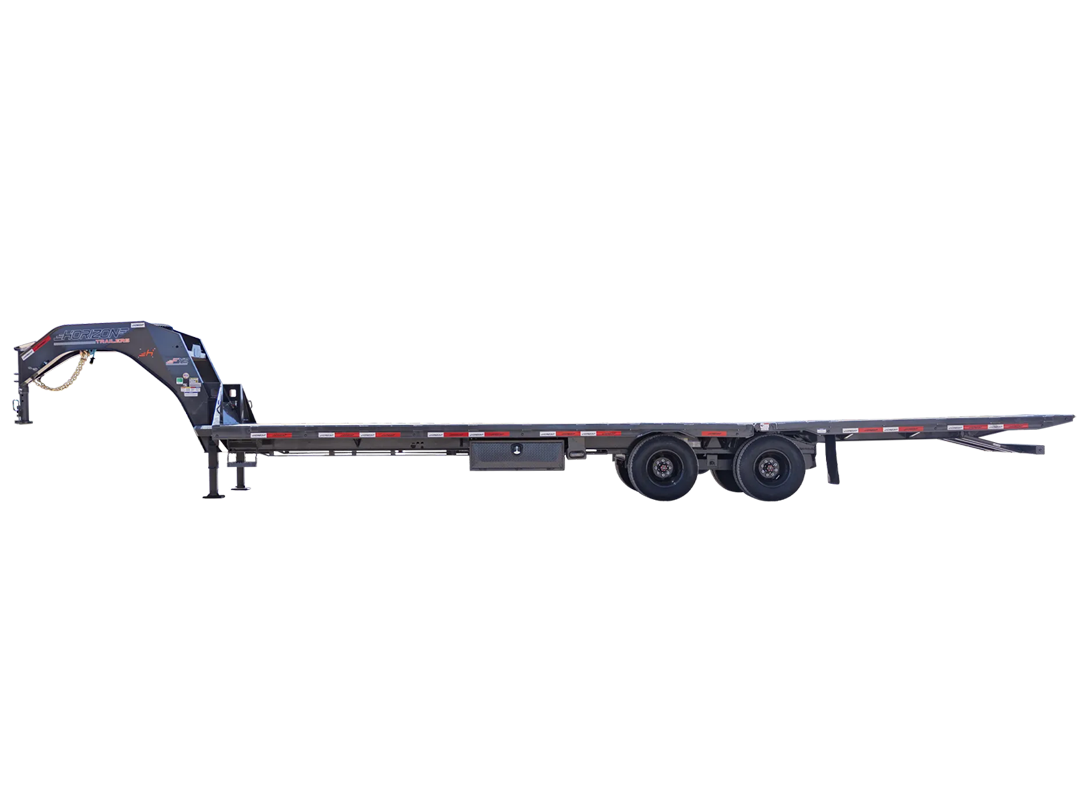

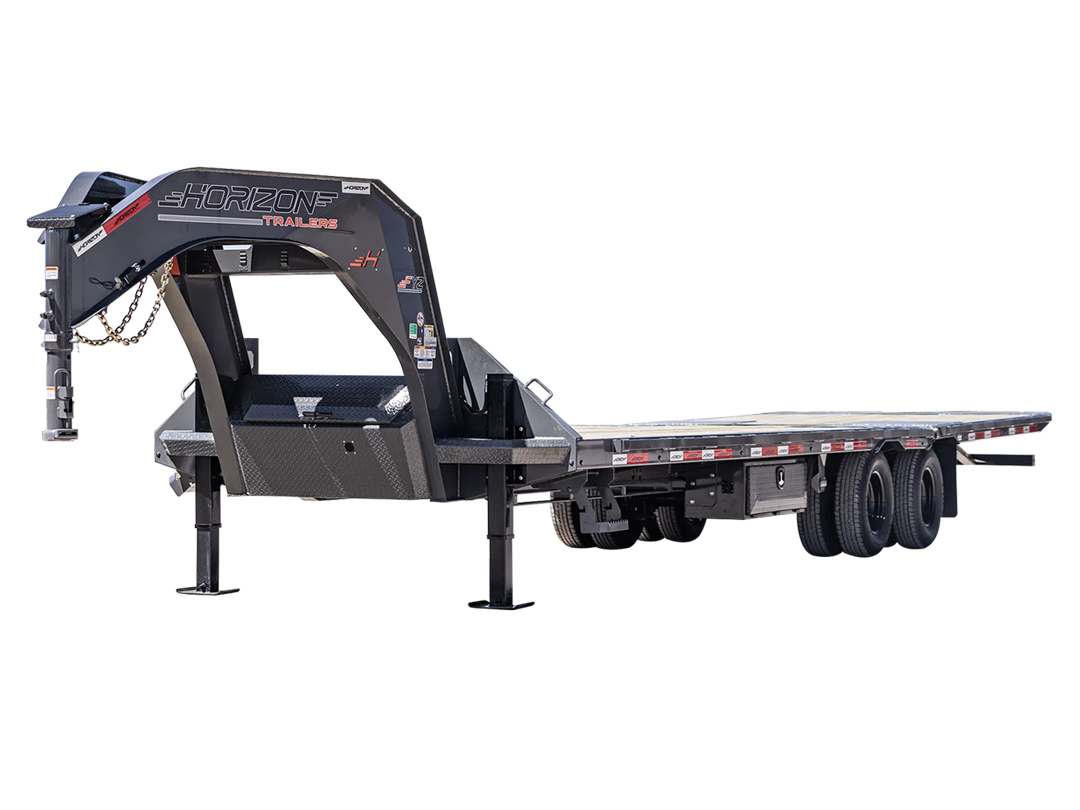

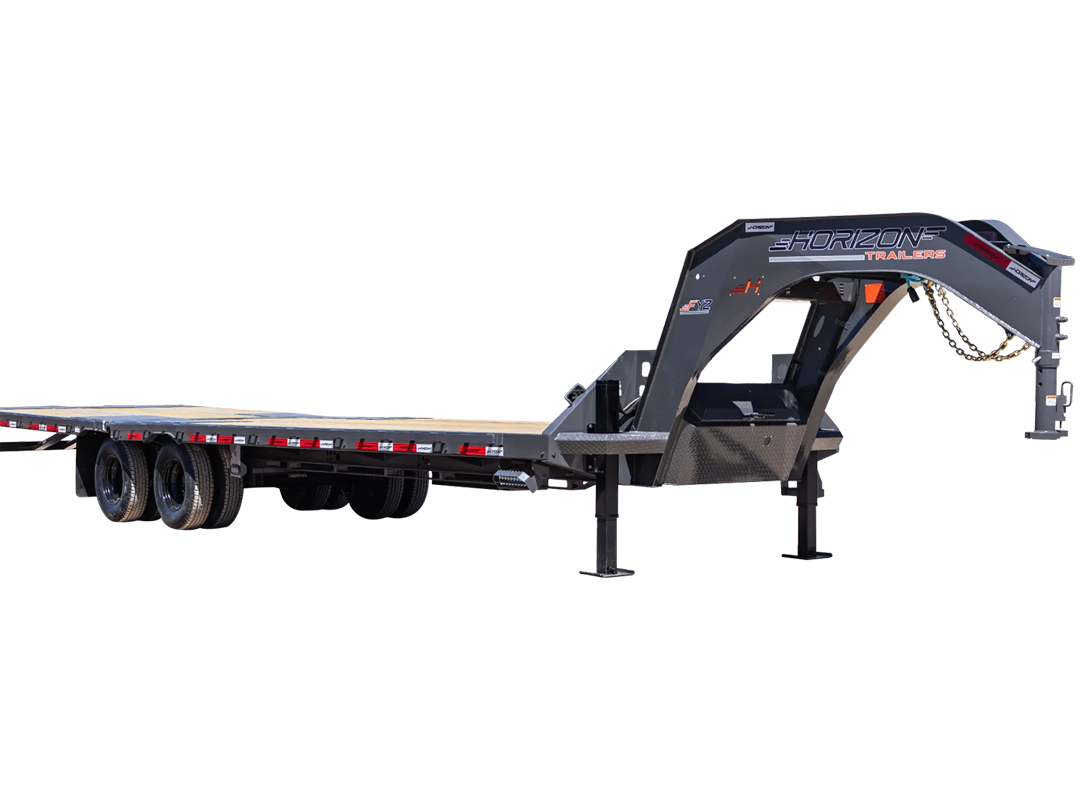

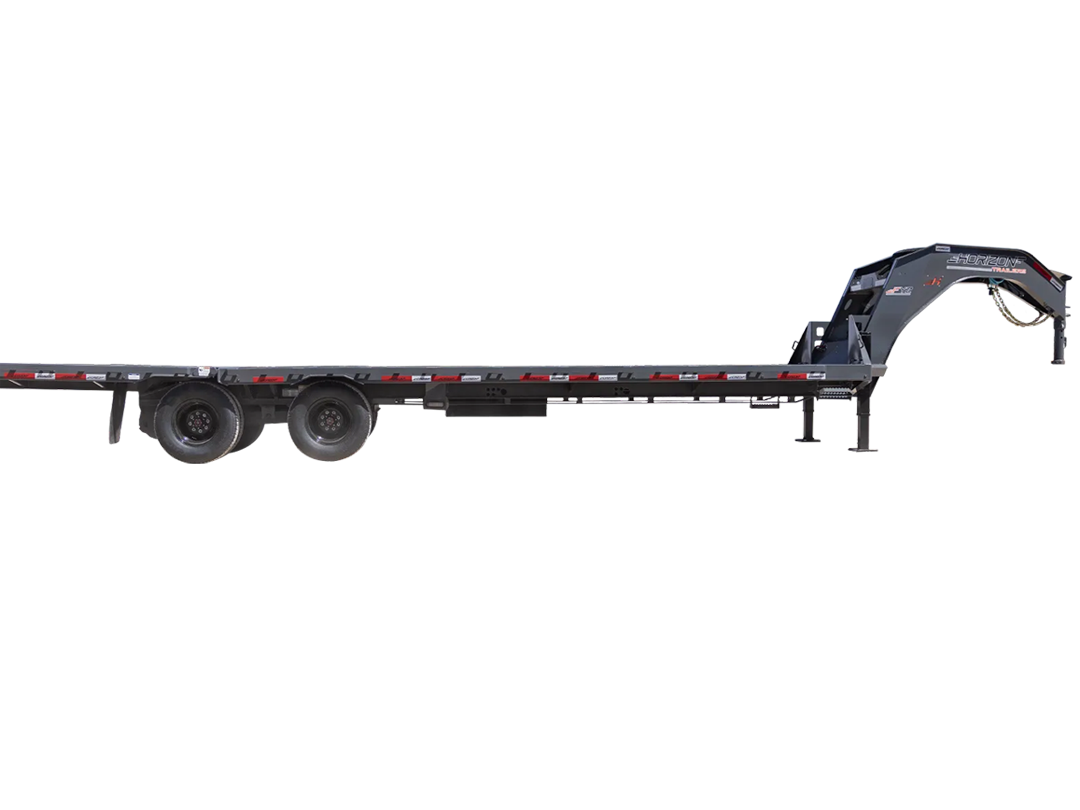

BUILT TO HANDLE ANY LOAD. The FYZ 30K 102" Gooseneck Trailer features a hydraulic dovetail with 10,000 lbs lifting capacity, a 12" I-beam frame, and premium axles for dependable performance. Available in deck lengths from 30' to 44', this trailer is perfect for heavy-duty transport. Explore its customizable options and elevate your hauling experience today!
Performance Meets Customization
POWER AND STYLE COMBINED. With a GVWR of 30,000 lbs and premium powder-coated finish in 12 unique colors, the FYZ 30K Gooseneck Trailer blends power and style. Enjoy standout features like a Mega Lockable Toolbox, DOT-approved LED lighting, and a 12' hydraulic dovetail for easy loading. Choose the perfect configuration for your needs!
Industry-Leading Warranties and Features
RELIABILITY YOU CAN TRUST. Invest in quality with the FYZ 30K Hydraulic Dovetail Trailer. It comes with a 6-year axle warranty and a 3-year frame warranty for peace of mind. Built with precision-engineered components, including a 16k dual axle setup and military-grade powder coat, it's a trailer built to last. Make your move today!
Product Details
TRAILER SPECS
DIMENSIONS & CAPACITY:
- AVAILABLE LENGTHS:
- 30', 32', 34', 36', 38', 40', 42', 44'
- DECK HEIGHT:
- 34"
- DECK WIDTH:
- 102"
- GAWR:
- 16,000 lbs
- GVWR:
- 30,000 lbs
FINISH:
- PAINT TYPE:
- Powdercoat
- SURFACE PREP:
- Steel Grit Blasted
- AXLE WARRANTY:
- 5 Year Spring Axle Warranty
- TRAILER WARRANTY:
- 3-Year Frame / 1-Year Parts Warranty
COLOR OPTIONS:
- AVAILABLE COLORS:
- Military Green, Desert Tan, Flame Orange, Midnight Black, Spectra Yellow, Blue Horizon, Lime Green, Ash Grey, True Red, Pearl White, Cloud Grey, Navy Blue, Sunset Orange

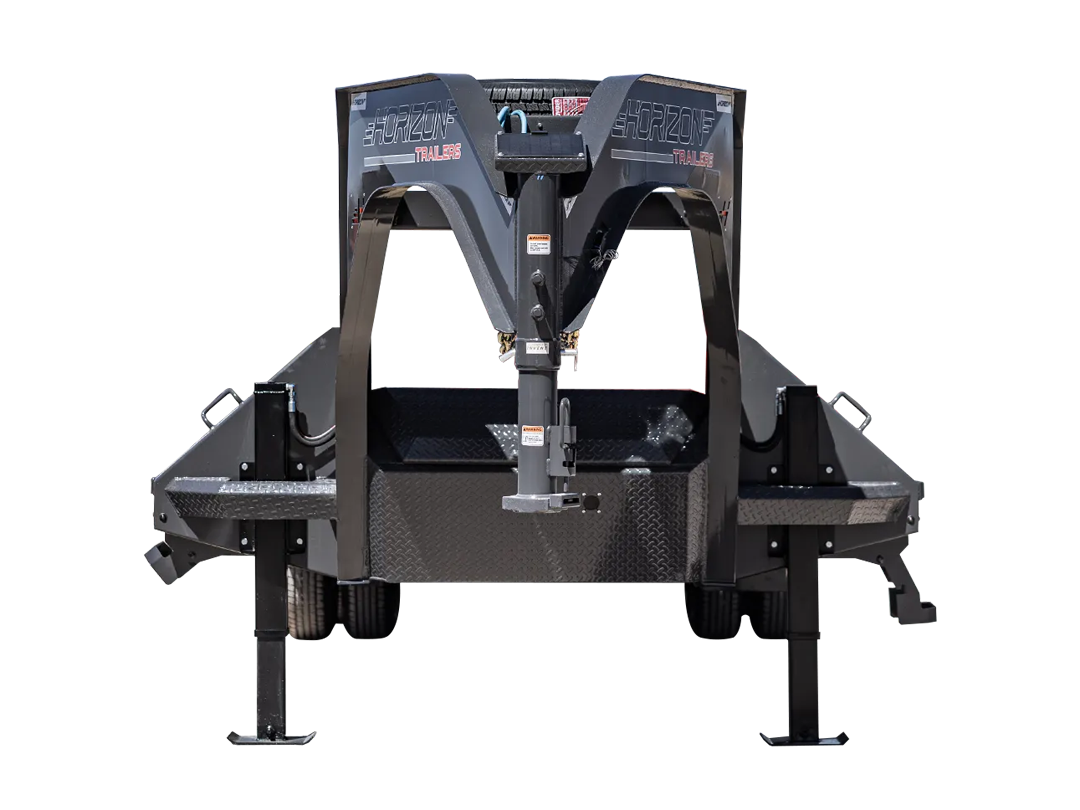

TONGUE
FRAME:
- TYPE:
- NeckBoss 12" Engineered I-Beam
- LENGTH:
- 98" (From Behind Riser)
- HEIGHT:
- 70" (From Underneath Neck)
- STORAGE:
- Storage Box / Winch Ready
HITCHING:
- COUPLER:
- Adjustable 2-5/16" Gooseneck Coupler (30,000 lbs)
- FRONT JACK:
- Dual Side-Wind Spring-Loaded Drop Leg Jacks (12,000 lbs)
- TOOLBOX:
- Mega Lockable Toolbox
- SAFETY CHAINS:
- 3/8" Grade 70 Chains with Clevis Hooks (2)
CHASSIS
FRAME:
- MAIN FRAME:
- Bridged 12" I-Beam (22 lbs/ft)
- TORQUE TUBE:
- 4-1/2" Tube (30' and Up)
- DOVETAIL FRAME:
- 10" Engineered High-Tensile Steel I-Beam
- SIDE TOOLBOX:
- Lockable Toolbox (Houses Batteries and Pump)
DECK
CONSTRUCTION:
- REAR OF DECK:
- 12' Dovetail
- DECK FRAME:
- 2" × 6" × 7ga Tubing Bed Frame
- DECK FLOORING:
- Pine Lumber Floor
- DECK CROSSMEMBERS:
- 3" Channel (3.50 lbs/ft) 16" Spacing
- DECK HEIGHT:
- 34"
- DECK WIDTH:
- 102"

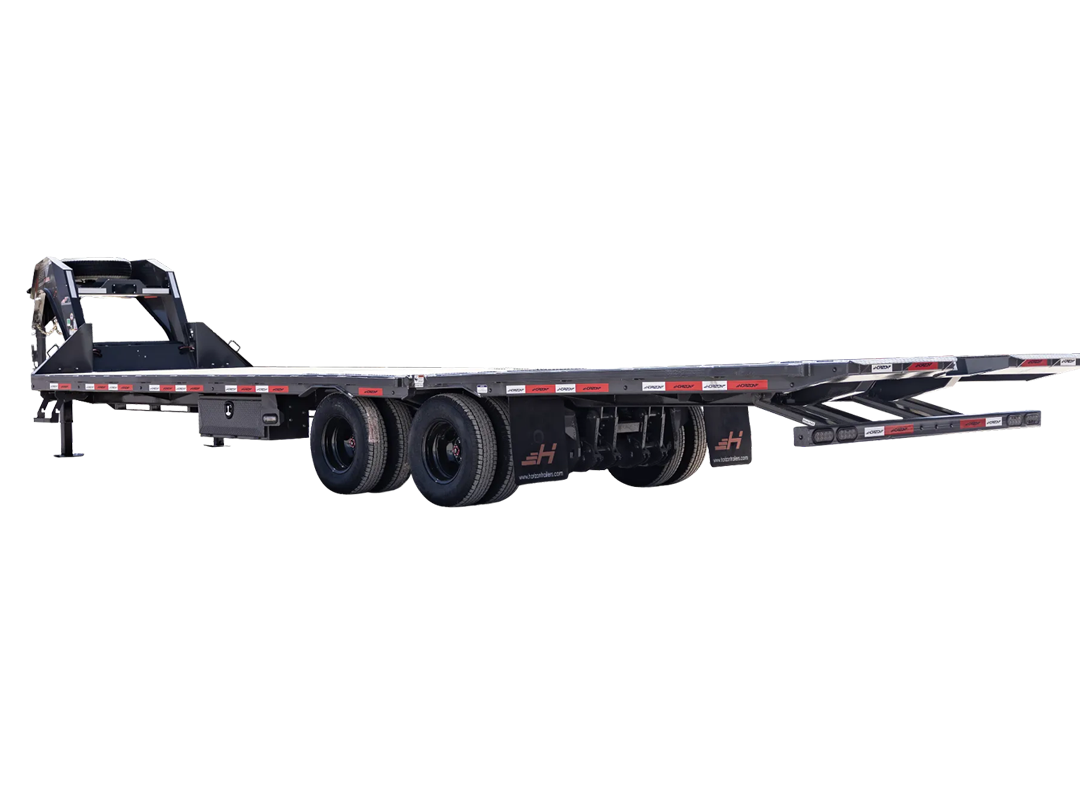

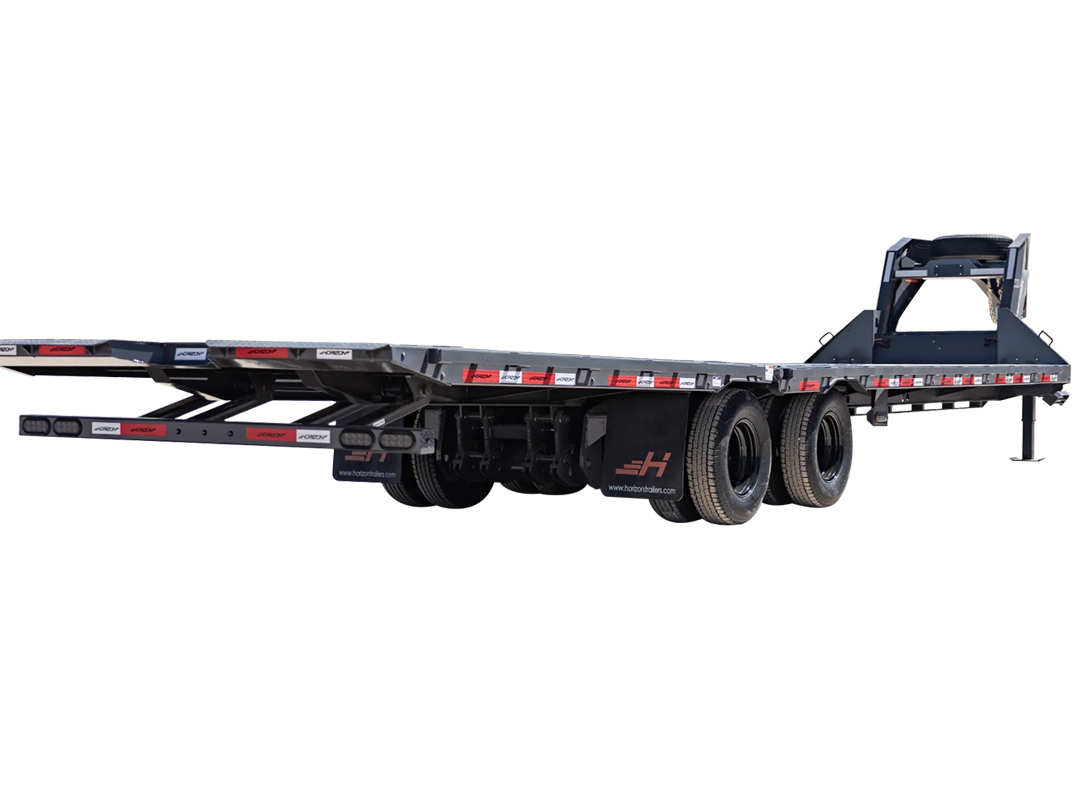

DOVETAIL:
- FRAME:
- 2" × 6" × 7ga Tubing Bed Frame
- FLOORING:
- Pine Lumber Floor
- CROSSMEMBERS:
- 3" I-Beam
- HEIGHT:
- 34"
- WIDTH:
- 102"
- LENGTH:
- 12'
FEATURES:
- HAULING CAPACITY:
- 10,000 lbs (Weight Distributed Across Deck)
- TILT:
- 13°
- RUB RAIL:
- 2" × 3/8"
- STAKE POCKETS:
- 1-5/8" × 3-5/8" (ID), Spaced at 24"
- PIPE SPOOLS:
- 2" × 10ga, Spaced at 24"
- SIDE STEPS:
- Slide-In Side Step on Both Sides
LIFT SYSTEM
HYDRAULICS:
- HYDRAULIC SYSTEM:
- 2-Button Hydraulic Power Up / Power Down
- PUMP:
- KTI 12V Hydraulic Pump
- CONTROLLER:
- 14' Control Cable
- WIRELESS REMOTE:
- Tuff Wireless 2-Button Remote
- CYLINDERS:
- 2 × 4" × 16" Single Push Cylinders
- LIFT CAPACITY:
- 10,000 lbs (Weight Distributed Across Deck)
RUNNING GEAR
AXLES & TIRES:
- TIRE TYPE:
- Radial Tires
- TIRE SIZE:
- ST235/75R17.5 Dual
- PLY RATING:
- 18 Ply
- TIRE LOAD RATING:
- 5,675 lbs
- WHEELS:
- 17.5" Black Mud Wheels
- AXLES:
- 16K Electric Brake Auto-Adjust Dual Oil Bath Spring Axles
- BOLT PATTERN:
- 8 on 10.83"
- AXLE COUNT:
- 2
- SUSPENSION:
- Heavy-Duty Double Slipper Mechanical Suspension
- AXLE WARRANTY:
- 5 Year Spring Axle Warranty

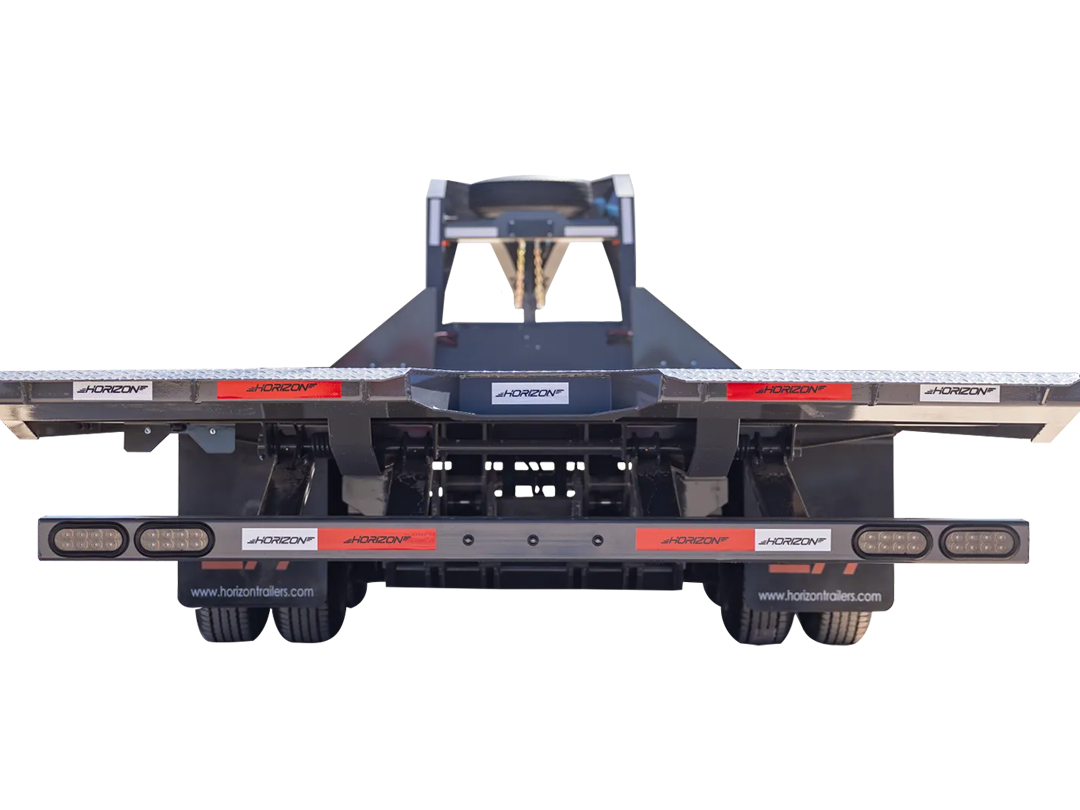

ELECTRICAL & LIGHTING
ELECTRICAL:
- BATTERY:
- 2 Interstate 27 Deep Cycle Batteries
- WIRING HARNESS:
- All-Weather Wiring Harness (7-Way RV)
- FRAME WIRING:
- Double Insulated Wiring Harness
- LIGHTS:
- DOT Approved TecNiq LED Lights
- REFLECTIVE TAPE:
- 3M DOT Compliant Reflective Tape
