Product Features
Tough Design for Heavy-Duty Tasks

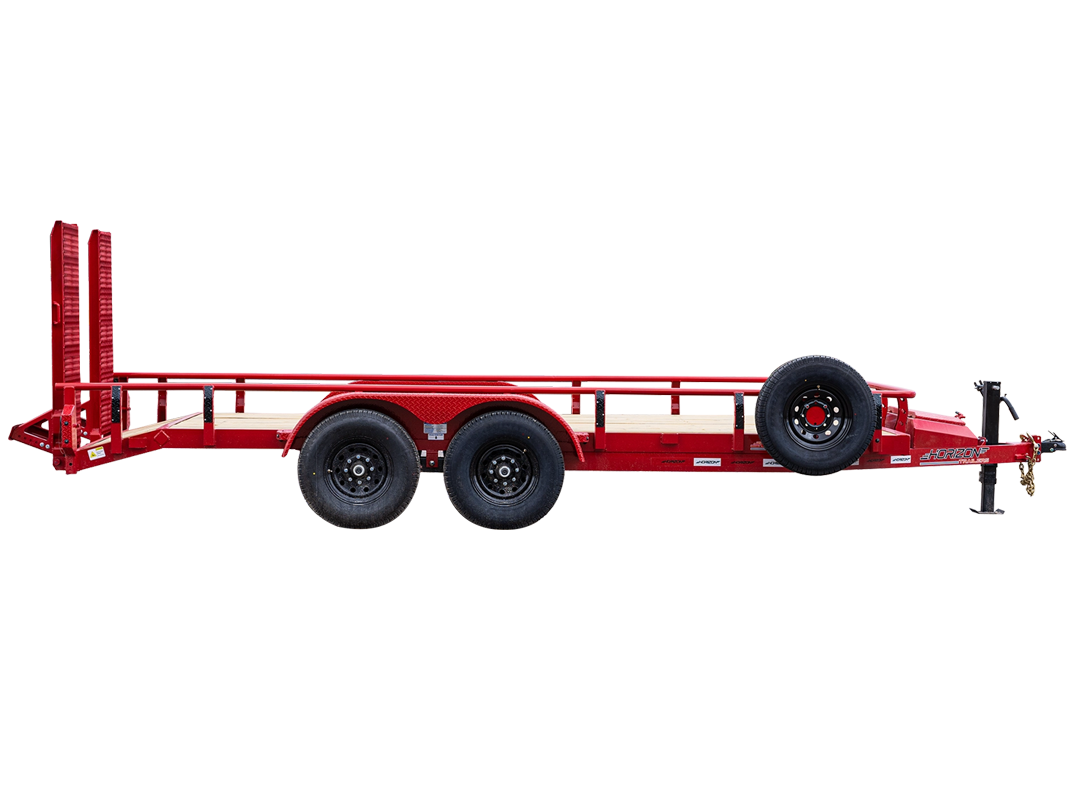

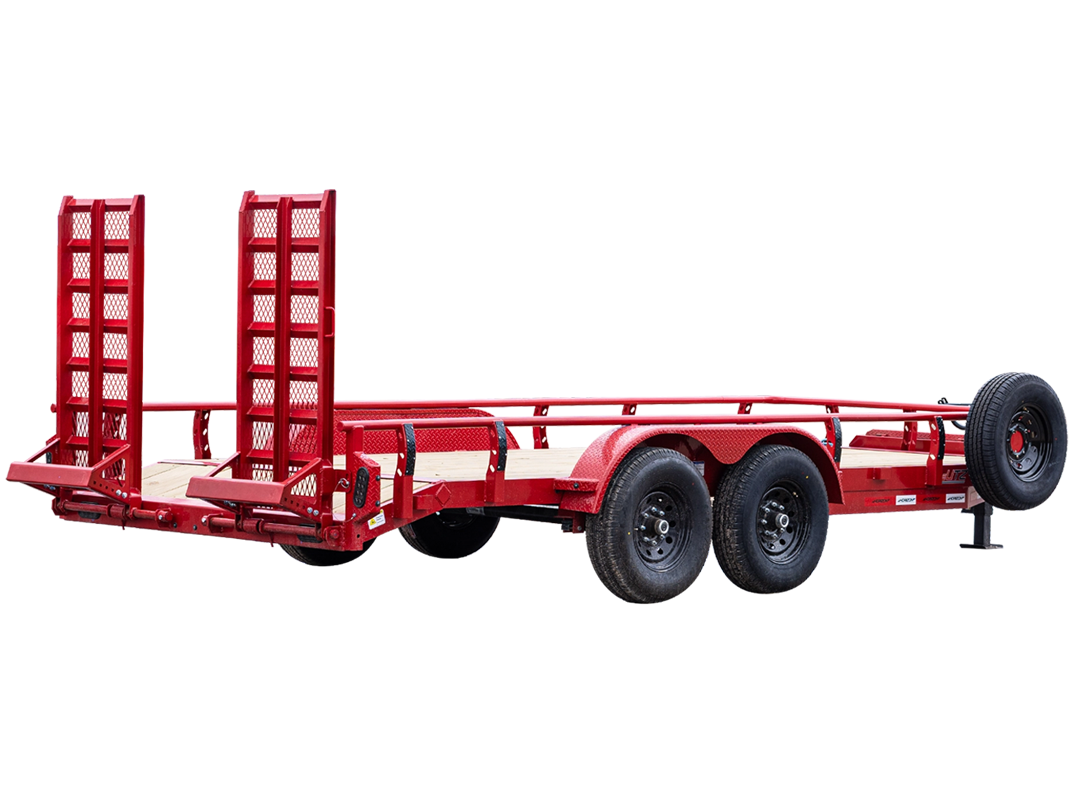

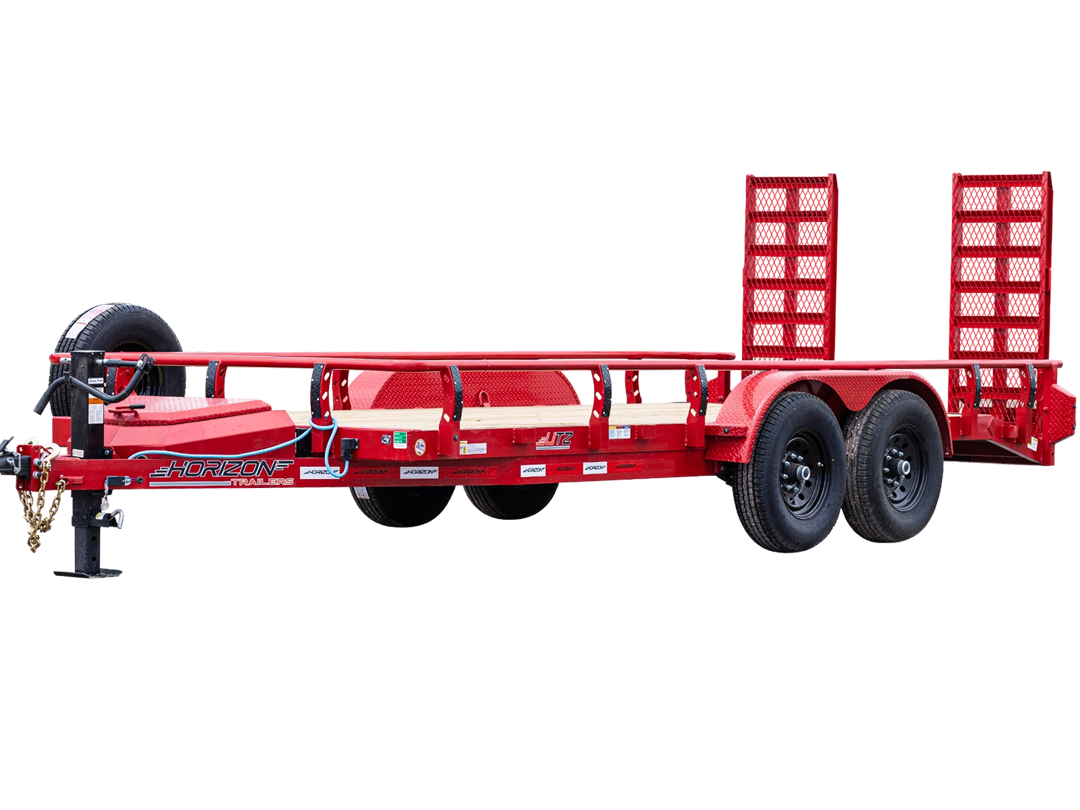

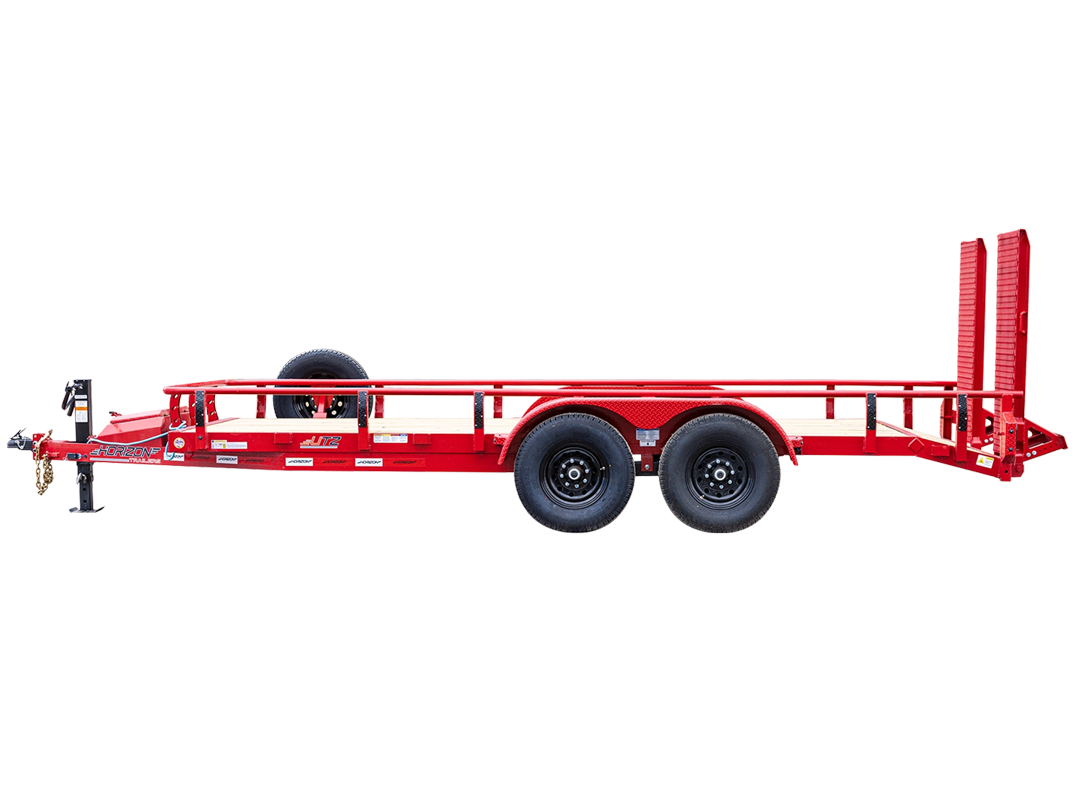

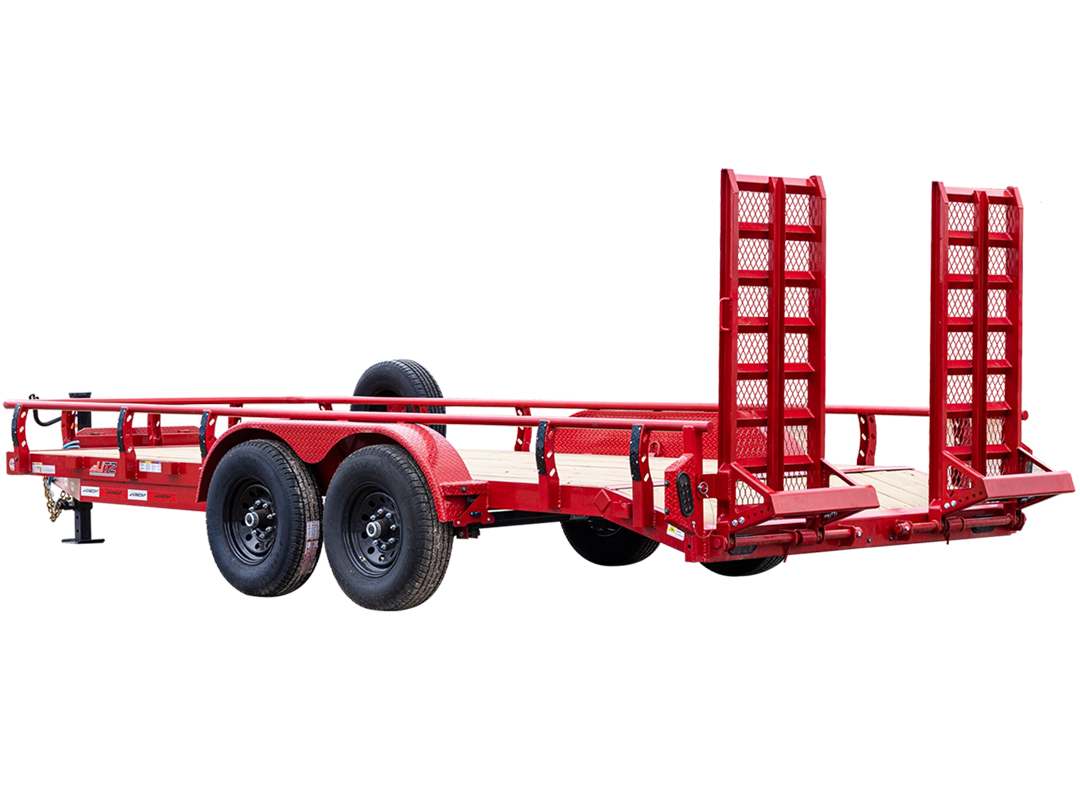

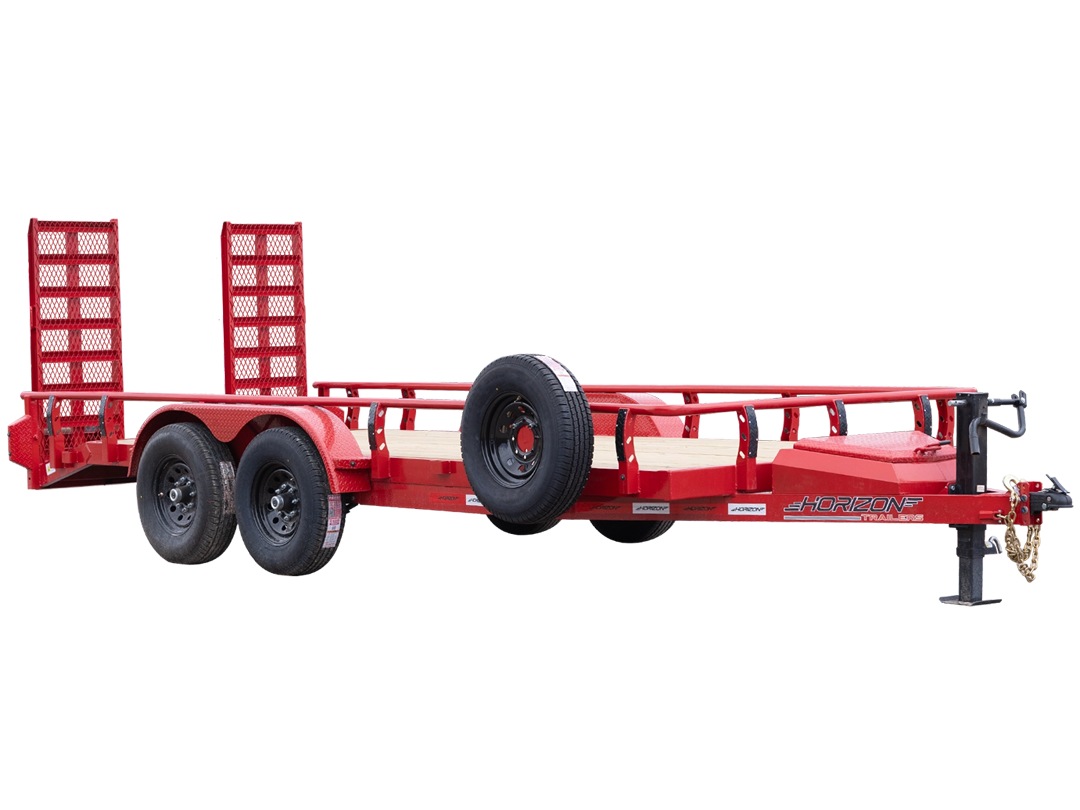

BUILT TO PERFORM: THE ULTIMATE UTILITY TRAILER. The UTZ 14K Utility Trailer features a robust 5" channel frame and 7k axles, ensuring top-tier performance for the toughest jobs. Its 83" wide deck and lengths up to 24' provide ample space for your cargo. With a powdercoat finish and reinforced safety features, it's designed to last. Customize it with ramps, toolbox options, and premium tires.
Designed For Your Needs
RELIABLE, VERSATILE, AND CUSTOMIZABLE. With a GVWR of 14,000 lbs and multiple lengths available, the UTZ 14K adapts to your requirements. It comes equipped with Tecniq LED lights, a durable pine lumber floor, and heavy-duty side ramp pockets. Add premium aluminum wheels, zinc primer undercoat, or dovetail ramps for enhanced functionality. Choose from a variety of striking colors to make it uniquely yours.
Built to Outlast the Competition
SAFETY AND DURABILITY IN EVERY DETAIL. The UTZ 14K boasts premium safety features, including Grade 70 safety chains and DOT-compliant reflective tape. Its 7k axles with EZ Lube technology ensure smooth rides, while the steel grit blasted frame and powdercoat finish enhance longevity. Whether for construction or farming, this trailer is a rugged solution you can depend on.Product Details
HIGHLIGHTS
KEY FEATURES:
- #1:
- 5" Channel (6.70 lbs/ft)
- #2:
- Weld On Spare Tire Mount
- #3:
- Reinforced 2" 10ga Round Tubing
- #4:
- 2 D-Rings In Between Fenders
- #5:
- 5" Channel (6.70 lbs/ft)
- #6:
- 83" Wide In Between Fenders
- #7:
- Side Ramp Pockets with 2 - 5' Long Slide In 3" Channel Ramps
- #8:
- 3/8" Grade 70 Safety Chain with Clevis Hook (2 Each)
- #9:
- Adjustable Auto Latch 2-5/16" BP Coupler (17,000 lbs)
- #10:
- 3" Channel (3.50 lbs/ft) Crossmembers 16" Spacing
TRAILER SPECS
DIMENSIONS:
- AVAILABLE LENGTHS:
- 18', 20', 22', 24'
- DECK HEIGHT:
- 24"
- DECK WIDTH:
- 83"
WEIGHT RATING:
- GAWR:
- 7,000 lbs
- GVWR:
- 14,000 lbs
FINISH:
- PAINT TYPE:
- Powdercoat
- PREP:
- Steel Grit Blasted
COLOR OPTIONS:
- AVAILABLE COLORS:
- Military Green, Desert Tan, Flame Orange, Midnight Black, Spectra Yellow, Blue Horizon, Lime Green, Ash Grey, True Red, Pearl White, Cloud Grey, Navy Blue, Sunset Orange
WARRANTY:
- AXLE WARRANTY:
- 5 Year Spring Axle Warranty
- TRAILER WARRANTY:
- Three (3) Year Frame / One (1) Year Parts Warranty

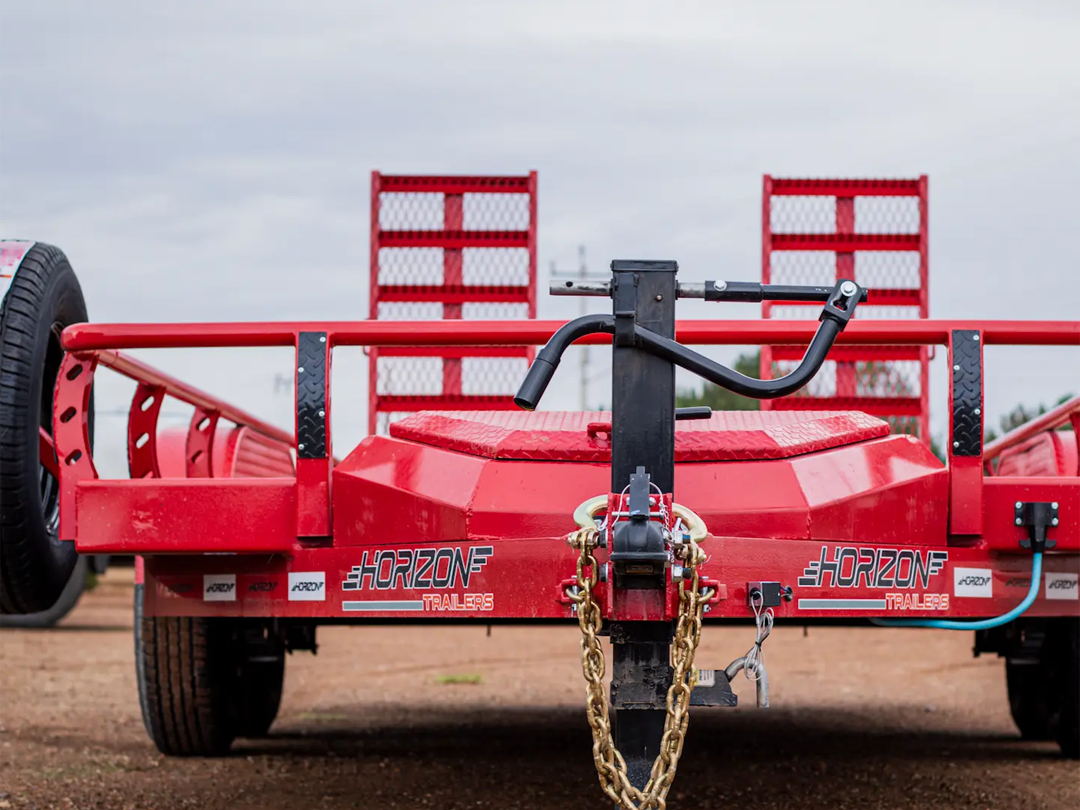

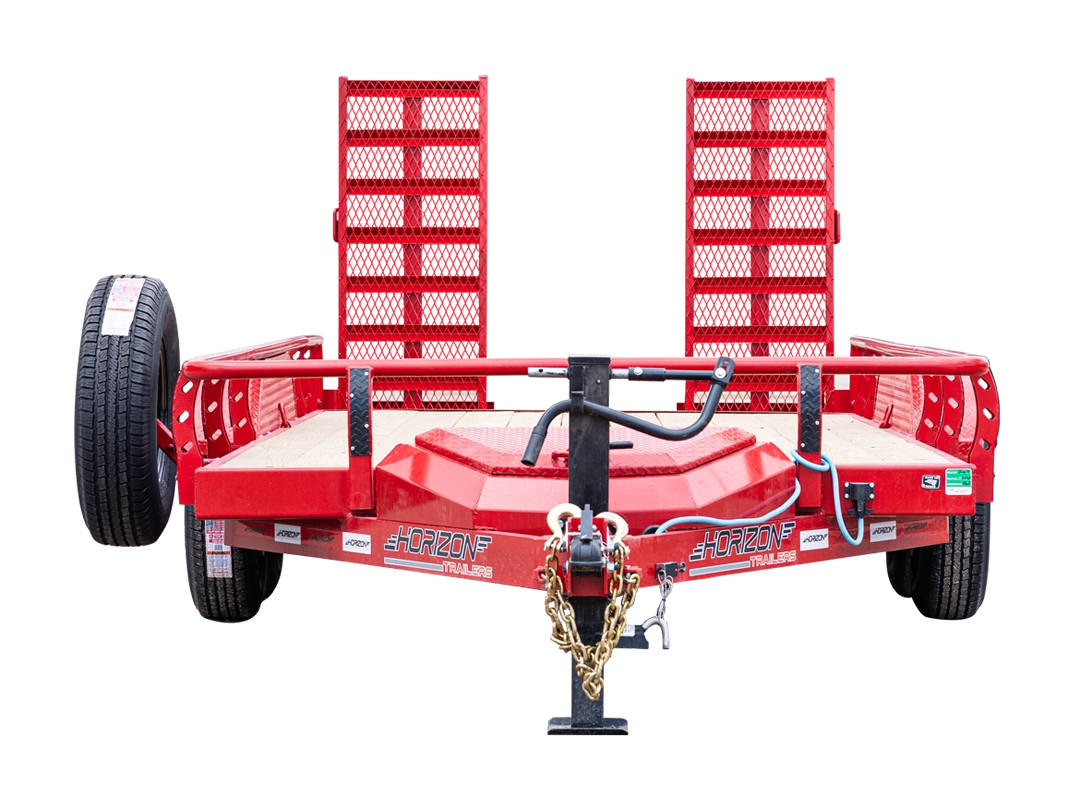

TONGUE
TONGUE:
- TYPE:
- 5" Channel (6.70 lbs/ft)
- LENGTH:
- 50"
- SPARE:
- Weld On Spare Tire Mount
COUPLER:
- STANDARD COUPLER:
- Adjustable Auto Latch 2-5/16" BP Coupler (21,000 lbs)

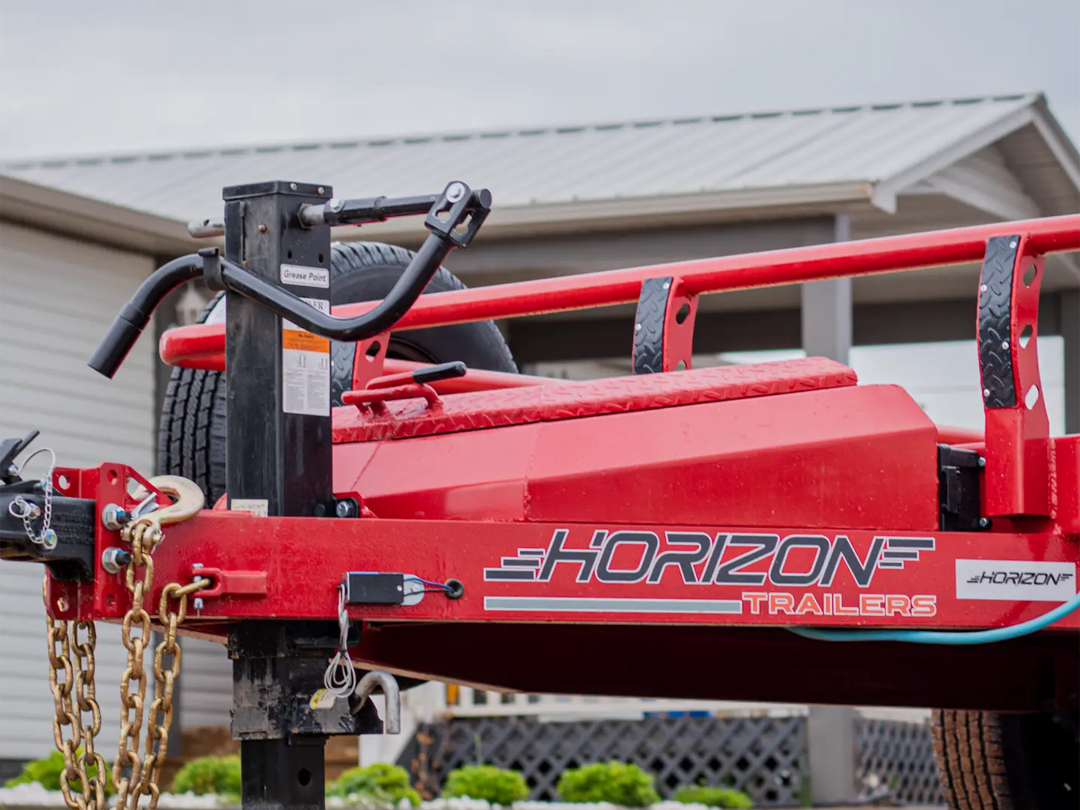

JACKS:
- FRONT JACK:
- 1 Side Wind Spring Loaded Drop Jack Leg (12,000 lbs)
SAFETY:
- SAFETY CHAINS:
- 3/8" Grade 70 Safety Chain with Clevis Hook (2 Each)
CHASSIS
FRAME:
- MAIN FRAME:
- 5" Channel (6.70 lbs/ft)
DECK
BED:
- REAR OF DECK:
- Straight Deck
- DECK FRAME:
- 5" Channel (6.70 lbs/ft)
- FLOORING:
- Pine Lumber Floor
- CROSSMEMBERS:
- 3" Channel (3.50 lbs/ft) 16" Spacing
- DECK HEIGHT:
- 24"
- DECK WIDTH:
- 83"
- WIDTH BETWEEN FENDERS:
- 83"
- D-RINGS:
- 2 D-Rings In Between Fenders
SIDES:
- RAILING:
- Reinforced 2" 10ga Round Tubing
- STAKE POCKETS:
- 1-5/8" x 3-5/8" Stake Pockets
- FENDERS:
- 14ga Diamond Plate Tear Drop Style Steel Fenders
REAR:

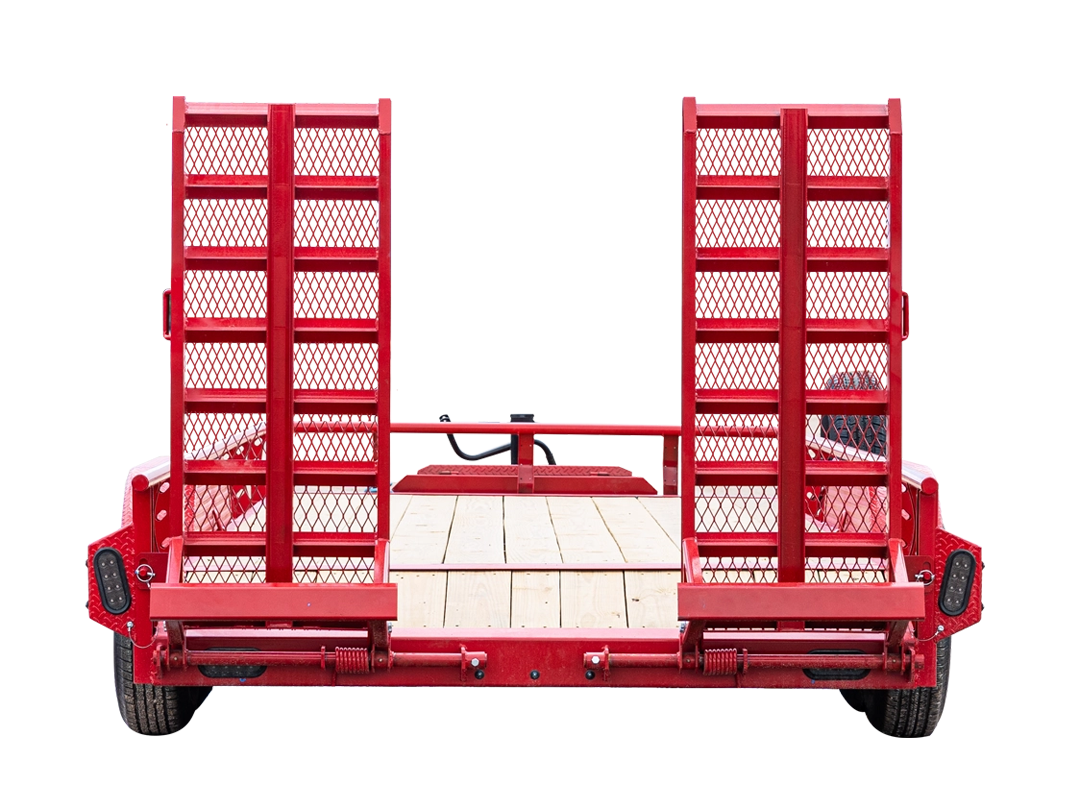

- RAMPS:
- Side Ramp Pockets with 5' Long Slide In 3" Channel Ramps
RUNNING GEAR
TIRES:
- TYPE:
- Radial Tires
- SIZE:
- ST235/80R16
- PLY:
- 10
- RATING:
- 3,520 lbs
- RIMS:
- 16" Black Mod Wheels
SUSPENSION:

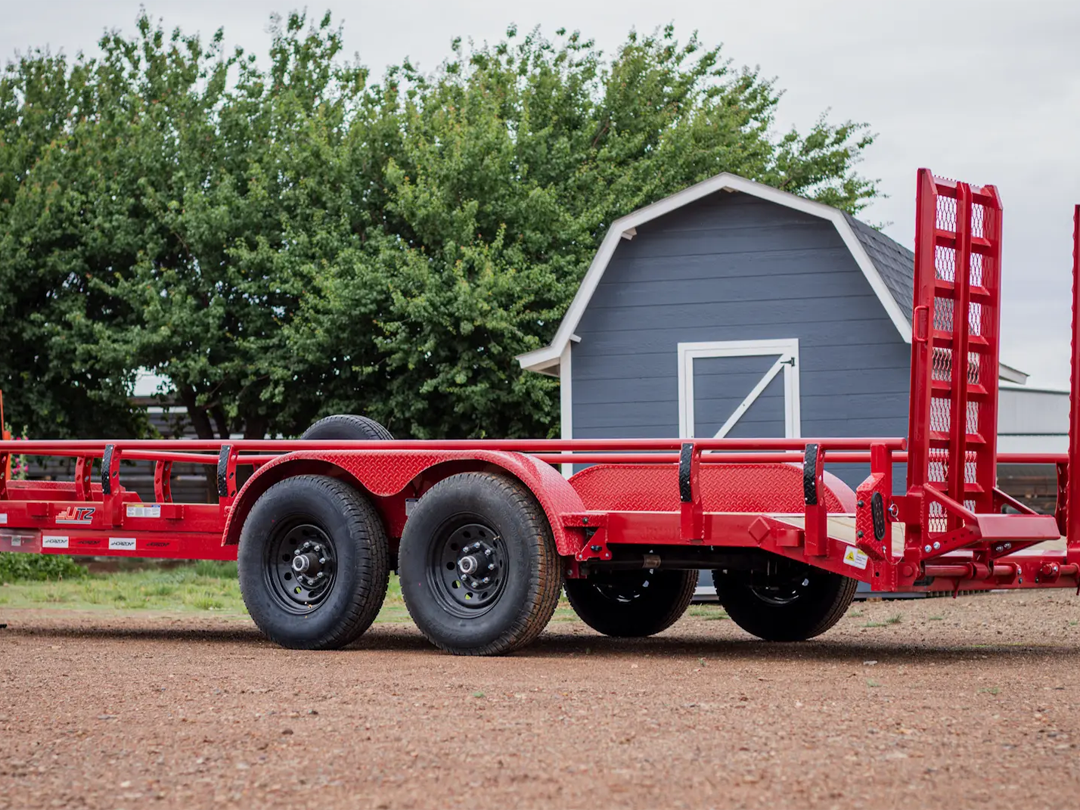

- AXLE TYPE:
- 7K Electric Brake Auto Adjust EZ Lube Spring Axles
- BOLT PATTERN:
- 8 on 6.5"
- AXLE COUNT:
- 2
- SUSPENSION TYPE:
- Spring
- AXLE WARRANTY:
- 5 Year Spring Axle Warranty
ELECTRICAL AND LIGHTING
ELECTRICAL:
- BREAKAWAY SYSTEM:
- 2382 Brightway Group Electric Breakaway Kit
- WIRING HARNESS:
- All-Weather Wiring Harness (7-Way RV)
- FRAME WIRING:
- Double Insulated Wiring Harness

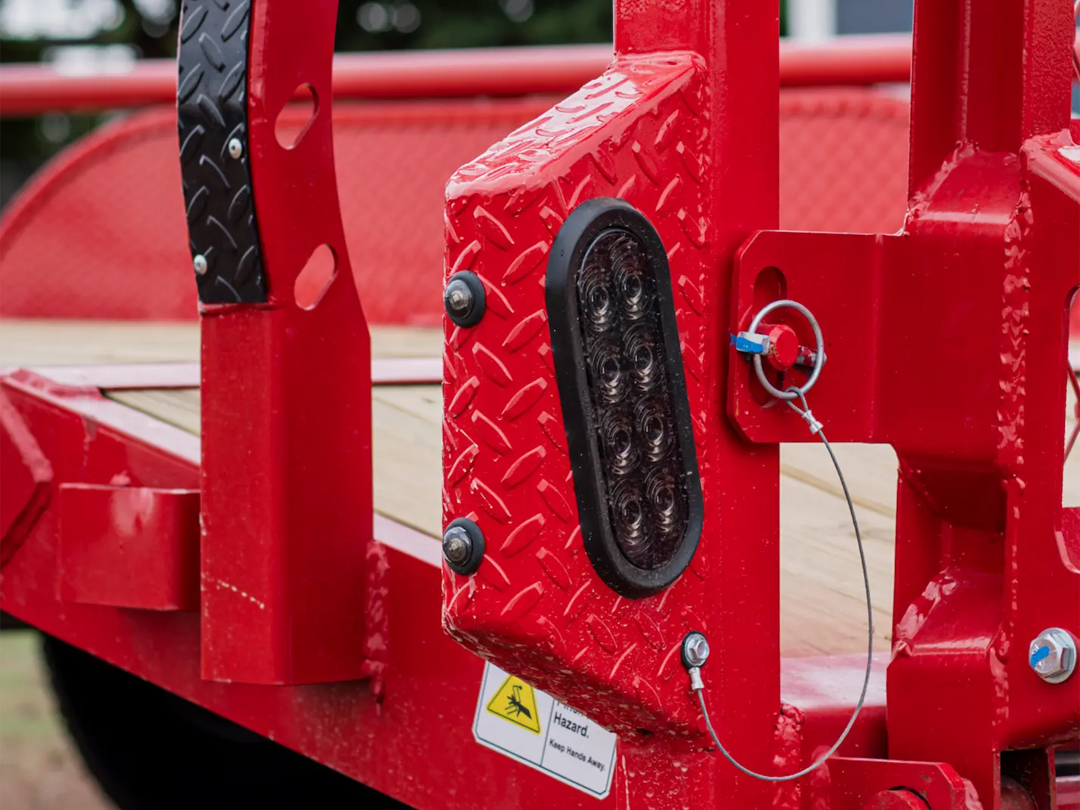

LIGHTING:
- LIGHTS:
- DOT Approved TecNiq LED Lights
SAFETY:
- REFLECTIVE TAPE:
- 3M DOT Compliant Reflective Tape
