Product Features
Designed for Demanding Tasks

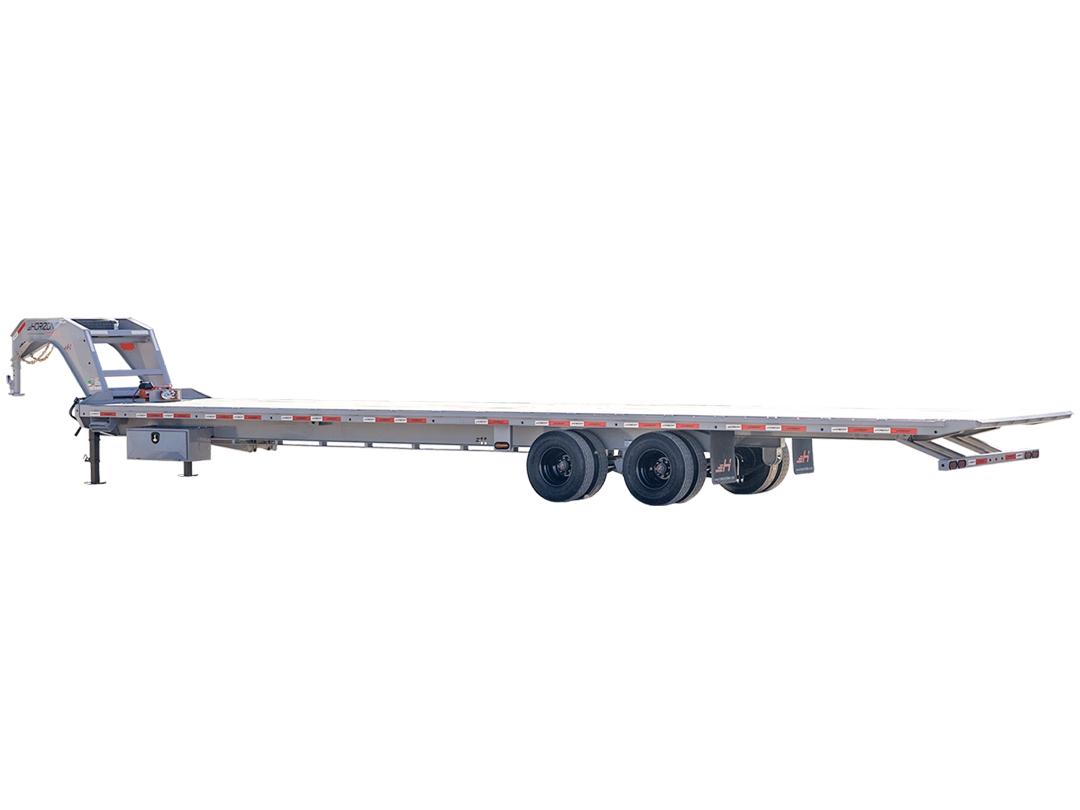

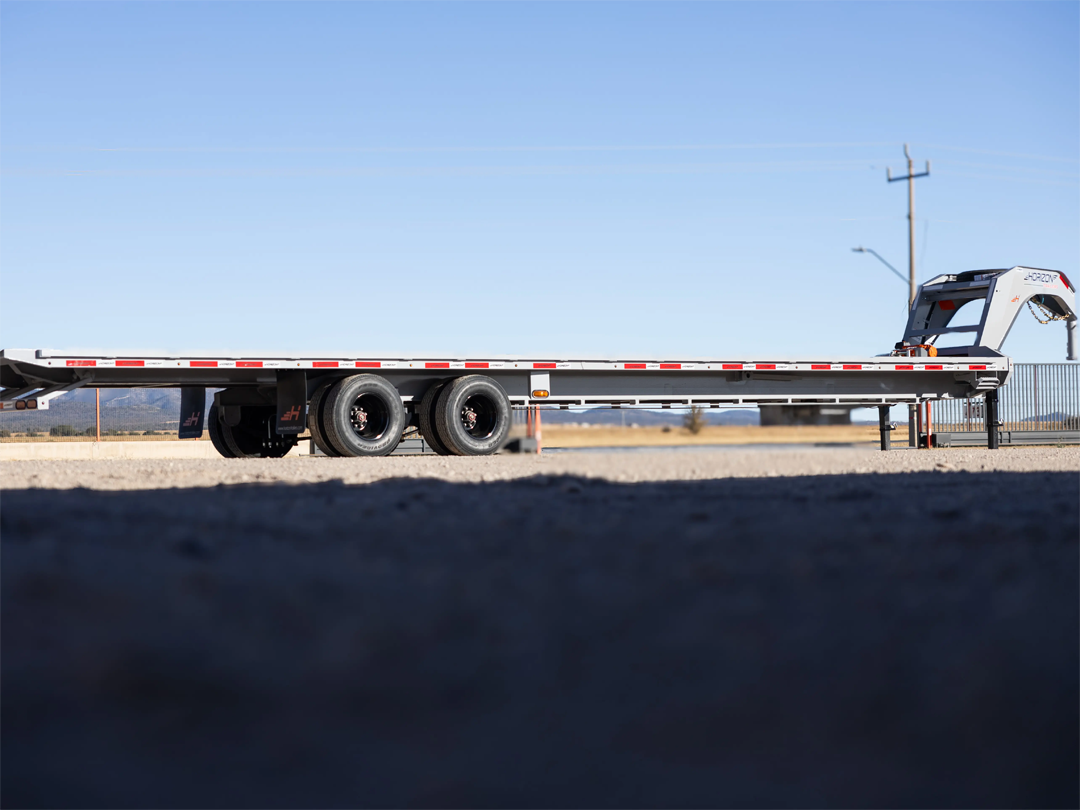

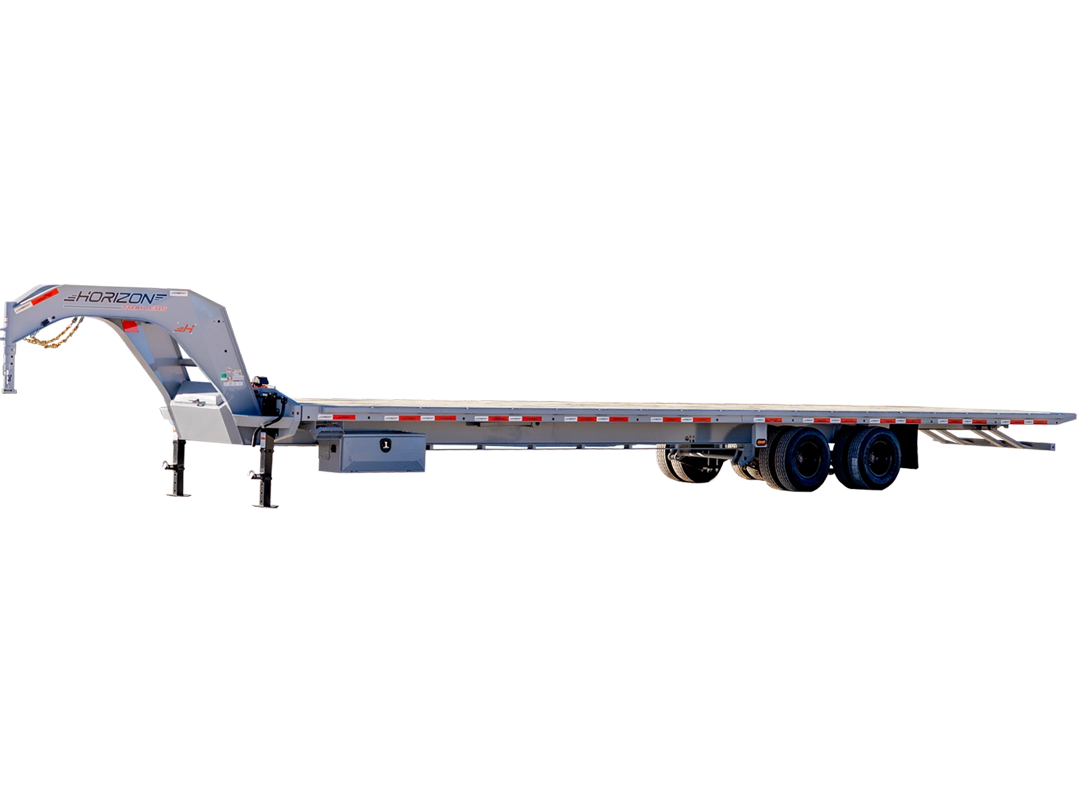

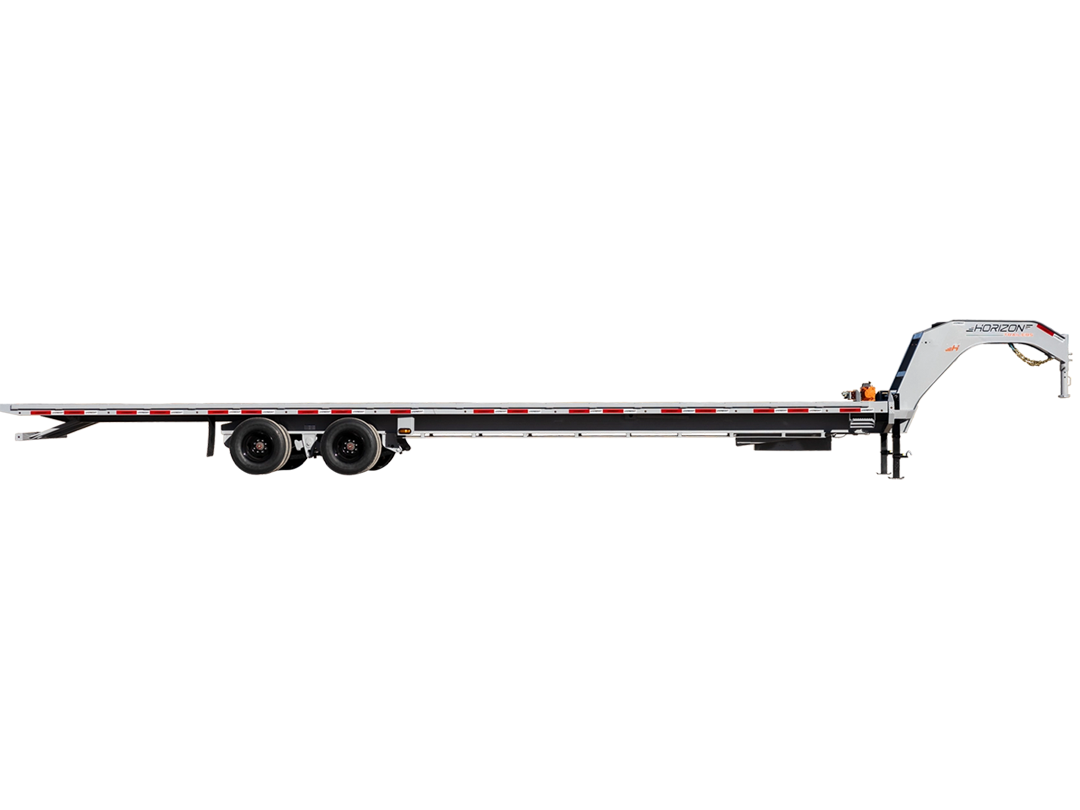

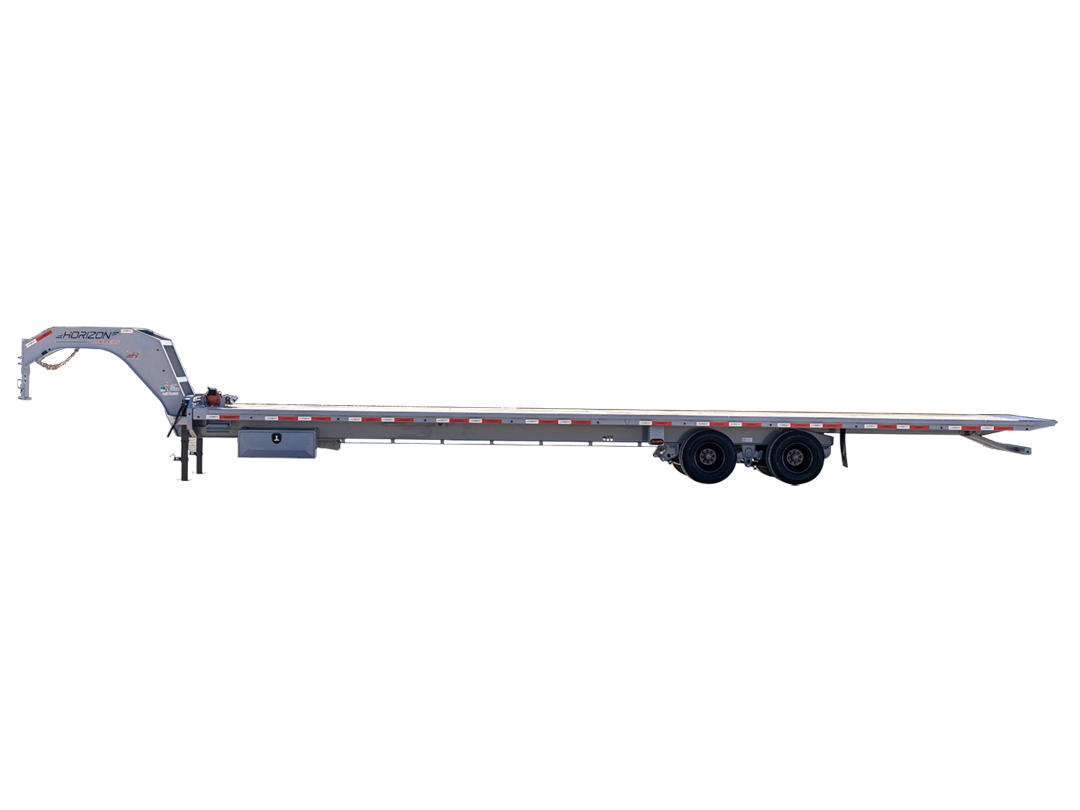

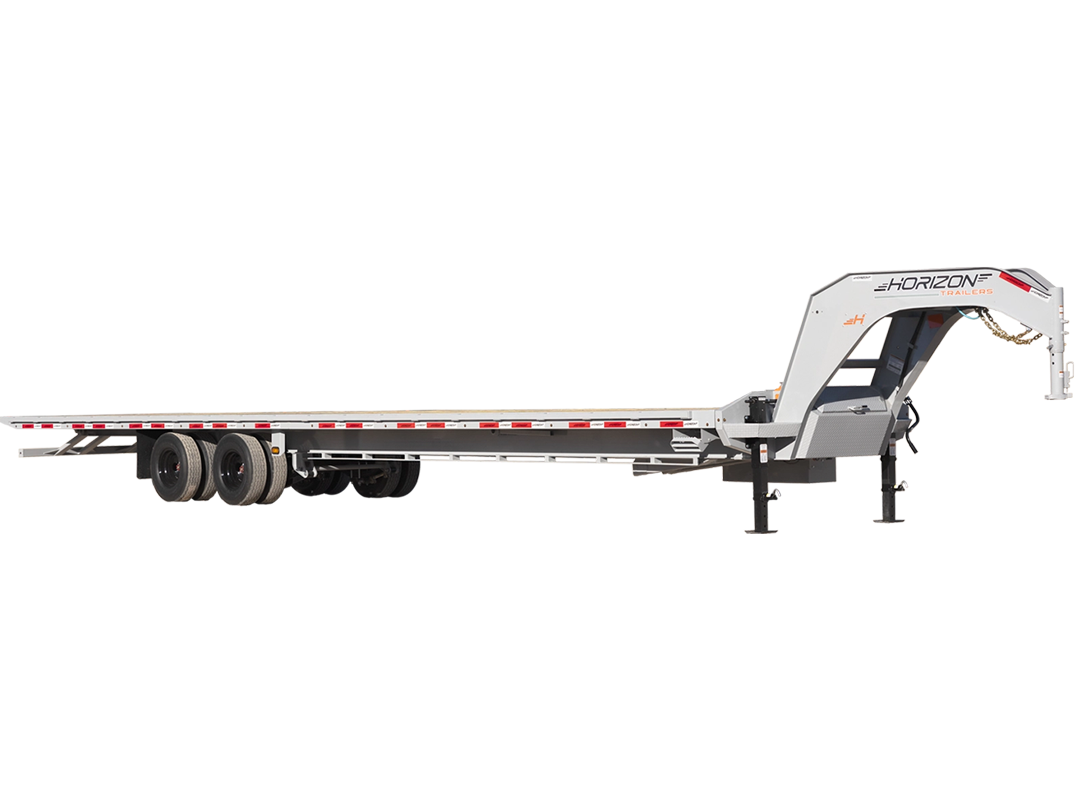

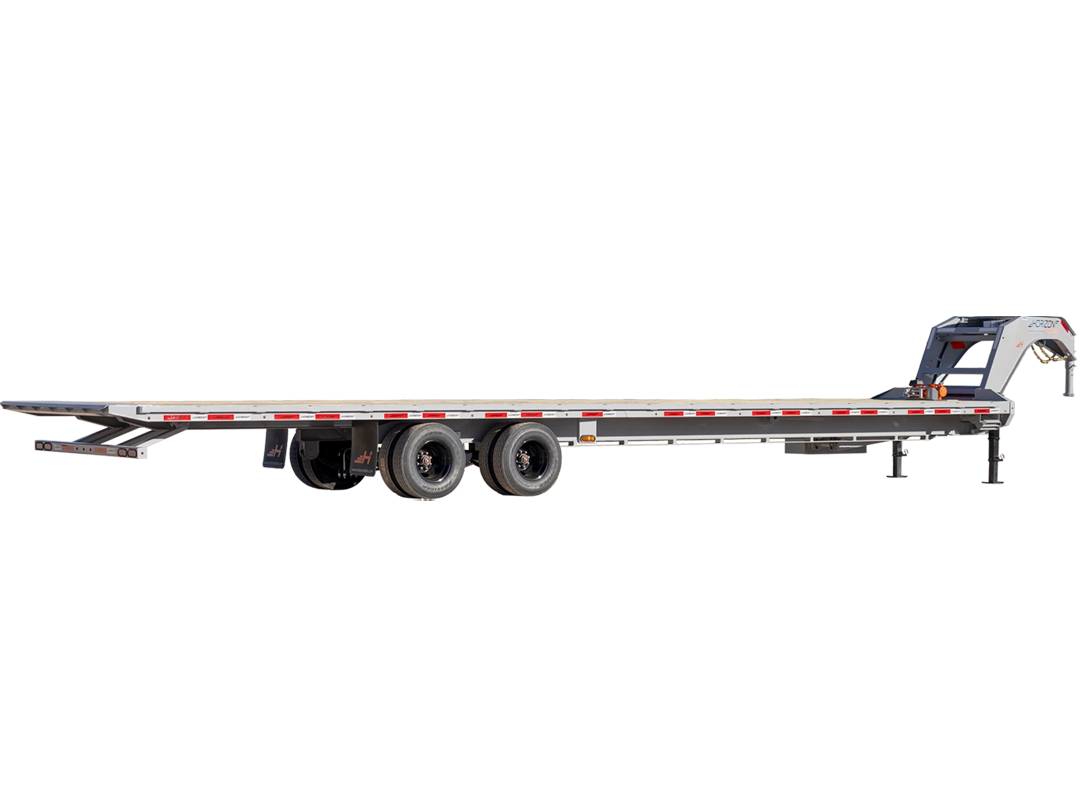

BUILT TO LAST. The FFH 25K 102" Full Tilt Flatdeck sets a new standard for heavy-duty trailers. Engineered with a 12" bridged I-Beam frame, dual 10k axles, and a power-up/power-down hydraulic lift system, it offers unmatched durability and convenience. Choose from deck lengths up to 40' and vibrant finishes like Military Green or True Red. Experience the reliability of a 6-year axle warranty and a 3-year frame warranty. Whether hauling heavy machinery or large loads, this trailer delivers performance and peace of mind.
Effortless Operation
POWERFUL HYDRAULICS. The FFH 25K 102" Full Tilt Flatdeck boasts a 2-button hydraulic system with a KTI 12V pump, making heavy lifting effortless. Designed with a tilt angle of 14° to 19°, it accommodates various load types efficiently. The sturdy 2" x 6" tubular bed frame ensures longevity, while LED lighting and grade-70 safety chains enhance safety. Whether you're working on rugged terrains or highways, this trailer is ready to perform.
Meet Your Unique Needs
CUSTOMIZE YOUR TRAILER. With the FFH 25K 102" Full Tilt Flatdeck, customization is key. Select deck lengths from 24' to 40' and upgrade with options like Blackwood Pro decking or aluminum wheels. Add a wireless 6-button remote for enhanced control or equip it with Winchmax winches for extra hauling power. Paired with a powder-coated finish in bold colors like Flame Orange or Midnight Black, this trailer stands out while delivering exceptional functionality. Tailor it to your specifications and tackle your toughest jobs with confidence.
Product Details
TRAILER SPECS
DIMENSIONS:
- AVAILABLE LENGTHS:
- 24', 26', 28', 30', 32', 34', 36', 38', 40'
- DECK HEIGHT:
- 38"
- DECK WIDTH:
- 102"
WEIGHT RATING:
- GAWR:
- 10,000 lbs
- GVWR:
- 25,000 lbs
FINISH:
- PAINT TYPE:
- Powdercoat
- PREP:
- Steel Grit Blasted
COLOR OPTIONS:
- COLORS:
- Military Green, Desert Tan, Flame Orange, Midnight Black, Spectra Yellow, Blue Horizon, Lime Green, Ash Grey, True Red, Pearl White, Cloud Grey, Navy Blue, Sunset Orange
WARRANTY:
- AXLE WARRANTY:
- 5 Year Spring Axle Warranty
- TRAILER WARRANTY:
- Three (3) Year Frame / One (1) Year Parts Warranty
TONGUE
TONGUE:
- TYPE:

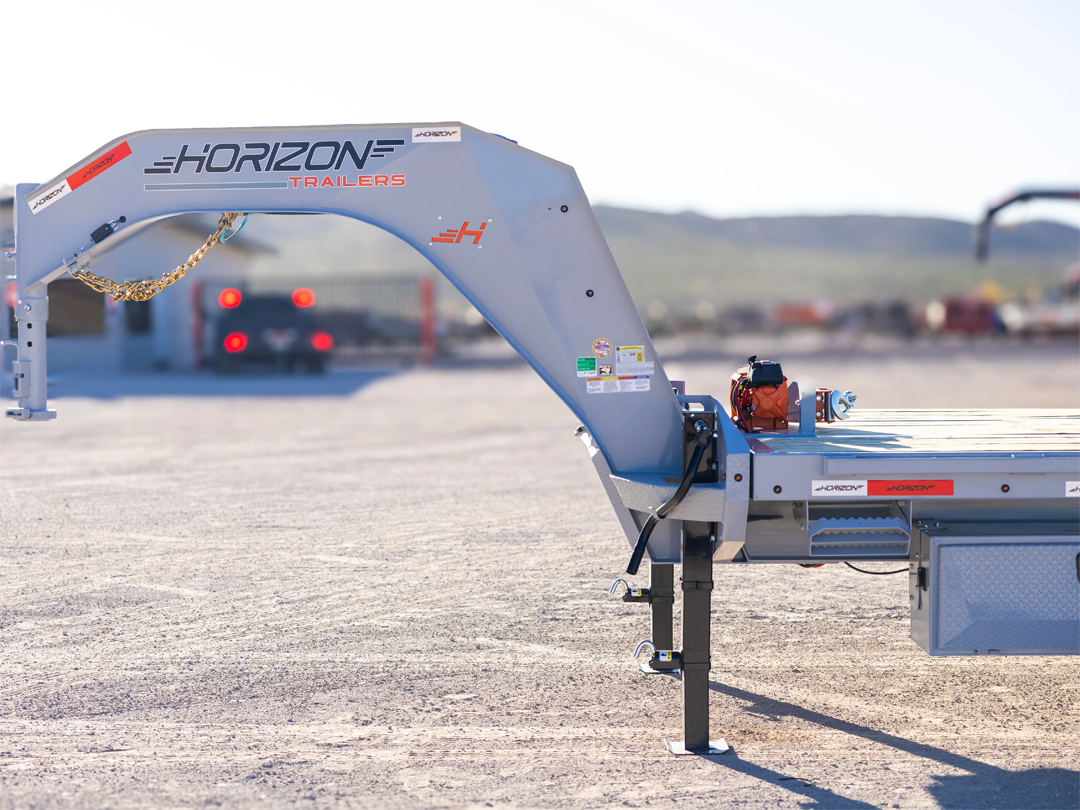

- NeckBoss 12" Engineered I-Beam
- LENGTH:
- 98" (From Behind Riser)
- HEIGHT:
- 70" (From Underneath Neck)
- SPARE:
- 70" (From Underneath Neck)
- STORAGE BEHIND NECK:
- Storage Box
COUPLER:
- STANDARD COUPLER:
- Adjustable 2-5/16" GN Coupler (30,000 lbs)
JACKS:
- FRONT JACK:

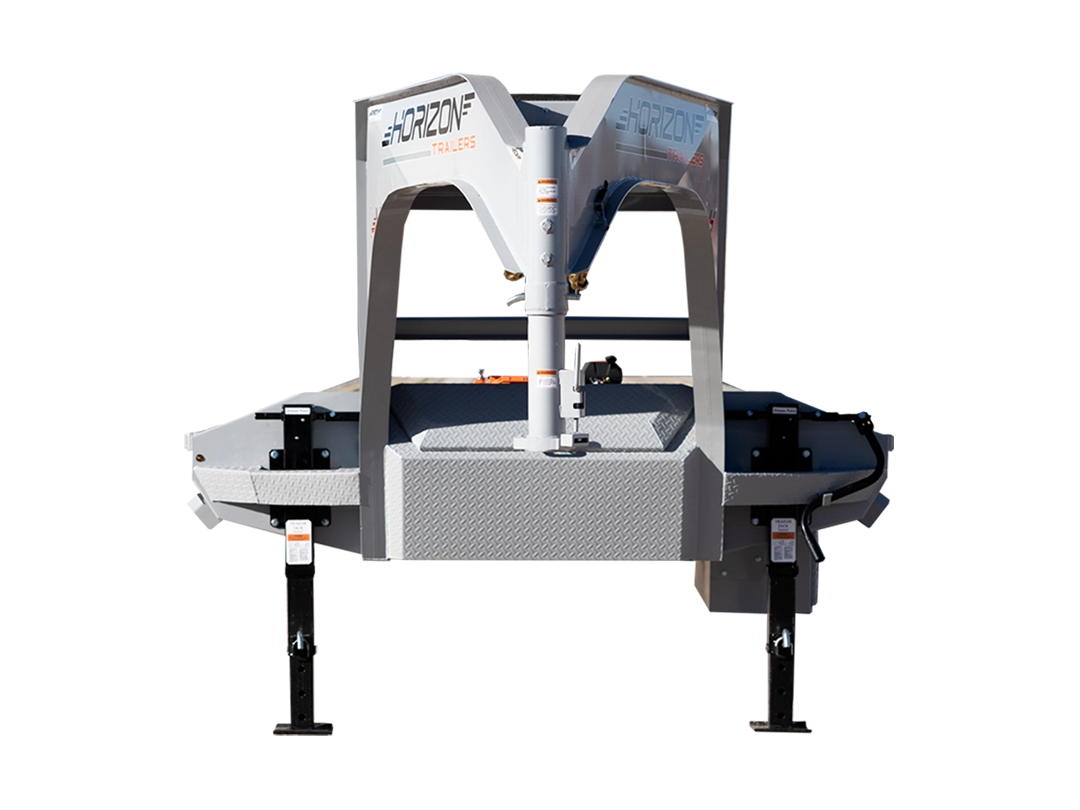

- 2 Side Wind Spring Loaded Drop Jack Legs (12,000 lbs)

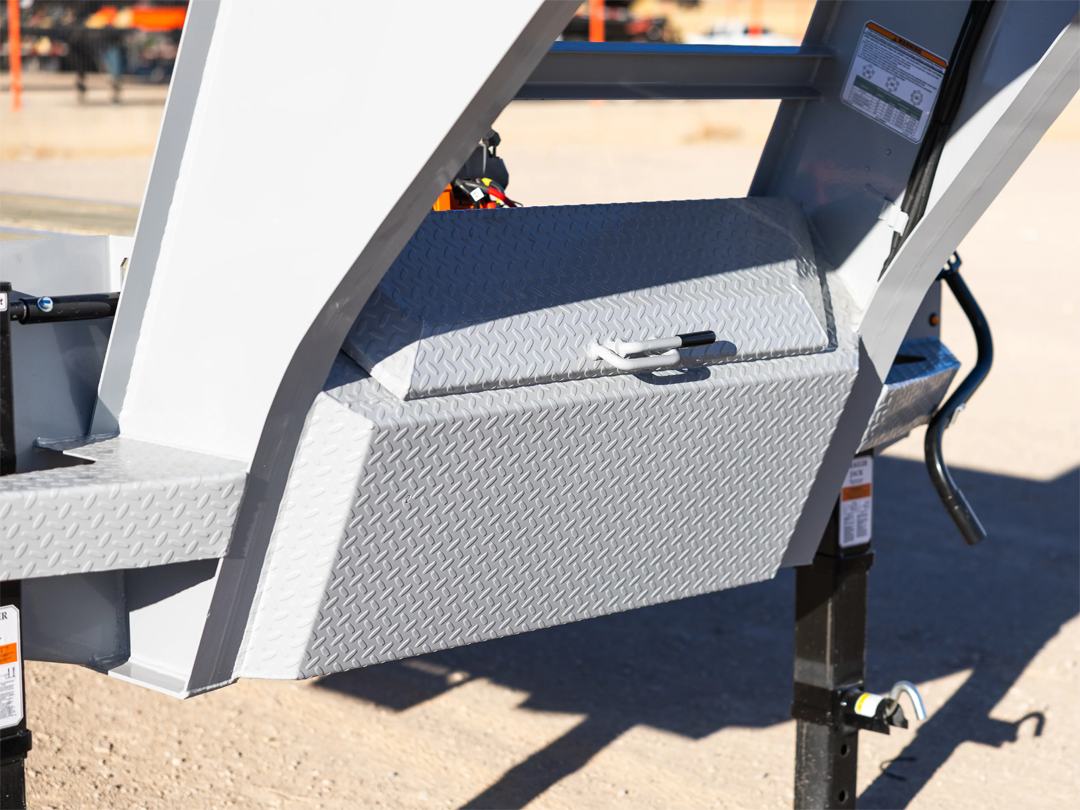

TOOLBOX:
- TOOLBOX:
- Mega Lockable Toolbox
SAFETY SYSTEM:
- SAFETY CHAINS:
- 3/8" Grade 70 Safety Chain w/Clevis Hook (2 Each)
CHASSIS
FRAME:
- MAIN FRAME:
- Bridged 12" I-Beam (19 lbs/ft)
SIDE:
- LEFT SIDE:

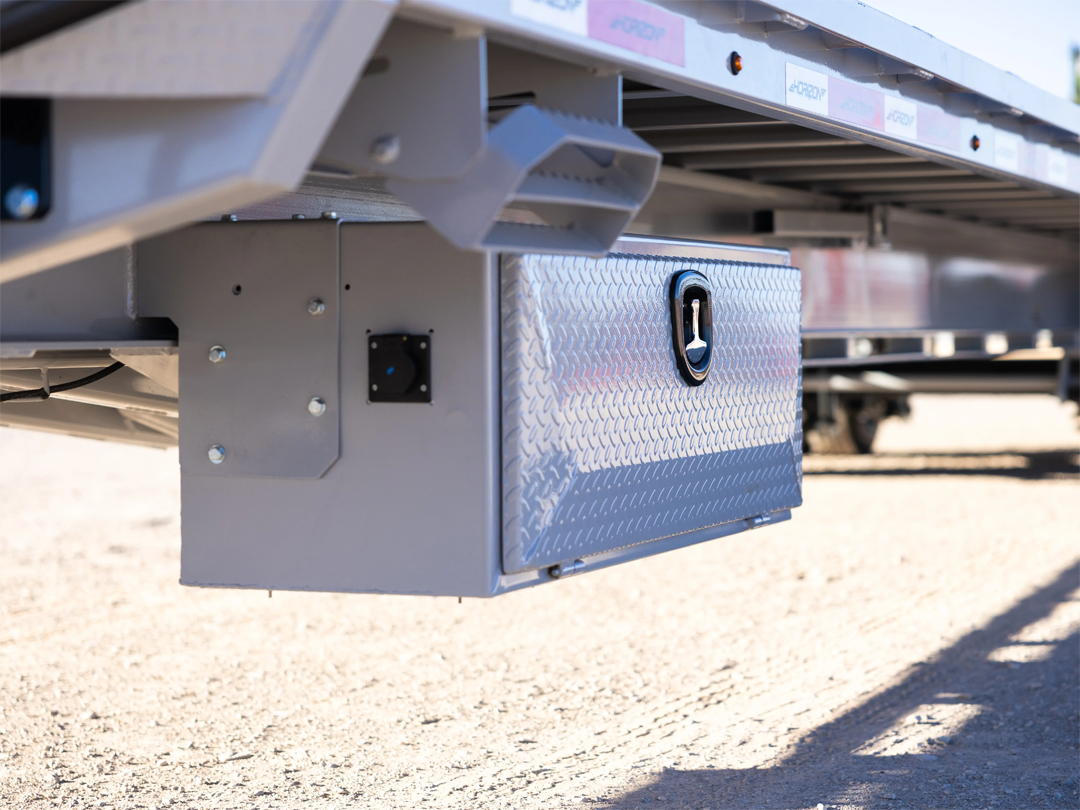

- Lockable Toolbox (Houses Batteries and Pump)
FULL TILT DECK

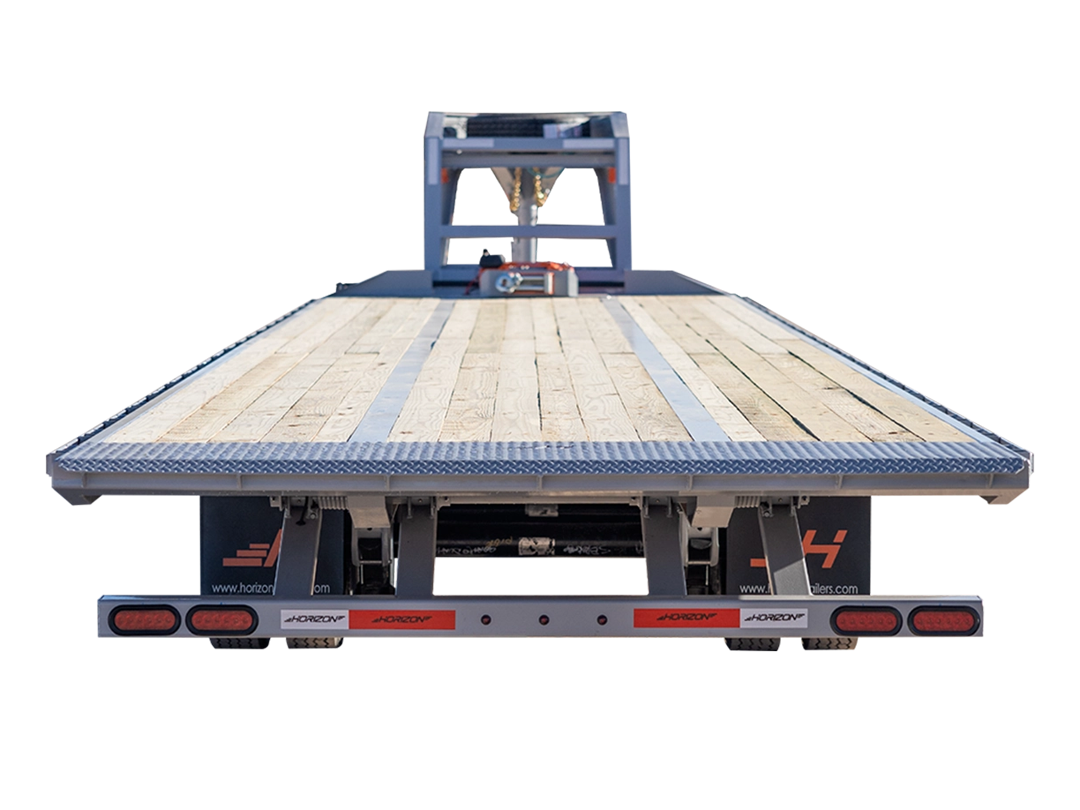

BED:
- DECK FRAME:
- 2" × 6" × 7ga Tubing Bed Frame
- FLOORING:
- Pine Lumber Floor
- CROSSMEMBERS:
- 3" Channel (3.50 lbs/ft) 16" Spacing
- DECK HEIGHT:
- 38"
- DECK WIDTH:
- 102"
- TORQUE TUBE 30' AND UP ONLY:
- 4-1/2" Tube
- WINCH PLATE:
- Winch Plate on Deck

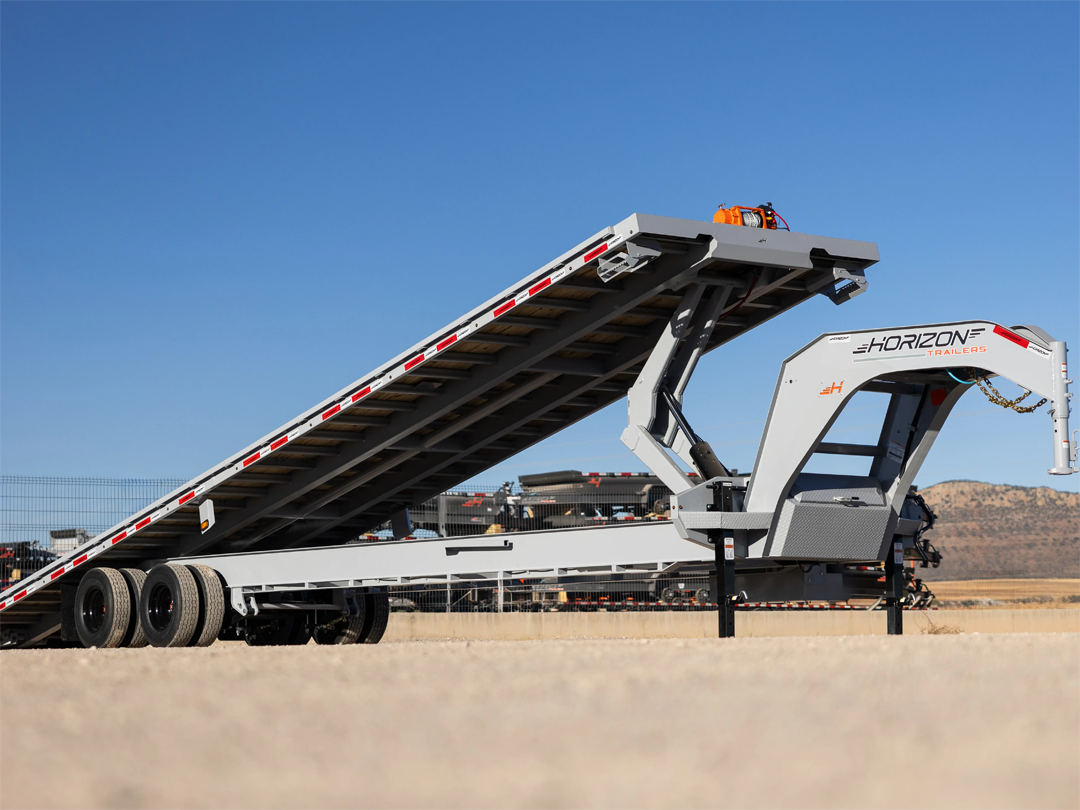

- TILT:
- 14°–19° (Degrees Vary, Depending on Deck Length)
SIDES:
- RUB RAIL:
- 2" × 3/8" Rub Rail
- STAKE POCKETS:
- 1-5/8" × 3-5/8" (ID) Stake Pockets (Spaced at 24")
- SPOOLS:
- 2" × 10ga Pipe Spools (Spaced at 24")
- SIDES:

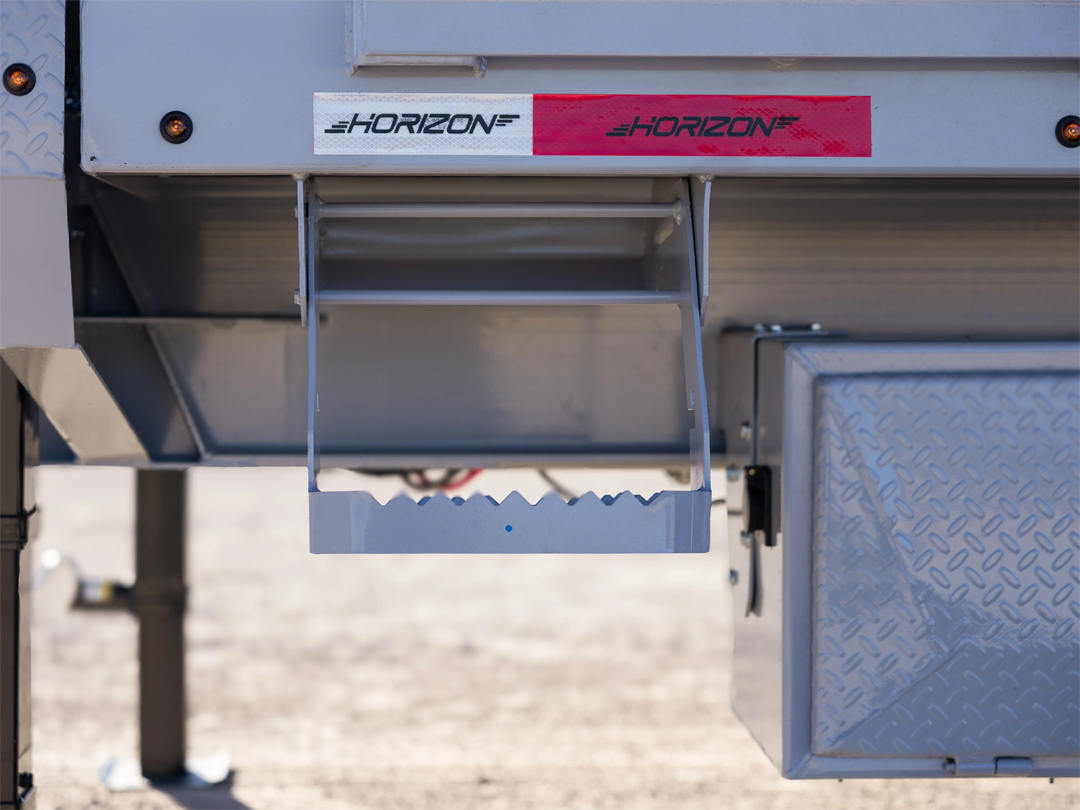

- Slide-In Side Step on Both Sides
LIFT SYSTEM
HYDRAULICS:
- SYSTEM:
- 2-Button Hydraulic - Power Up / Power Down
- PUMP:
- KTI 12V Hydraulic Pump
- CONTROLLER:
- 14' Control Cable
- WIRELESS CONTROLLER:
- Tuff Wireless 2-Button Wireless Remote
DECK LIFT:
- 24'-38' DECK LIFT:
- Hoist w/ 6" × 21" Single Push Cylinder (20,000 lbs)
- 40' DECK LIFT:
- Hoist w/ 6" × 30" Single Push Cylinder (20,000 lbs)
- LIFT CAPACITY:
- 20,000 lbs When Weight Distributed Across Length of Deck

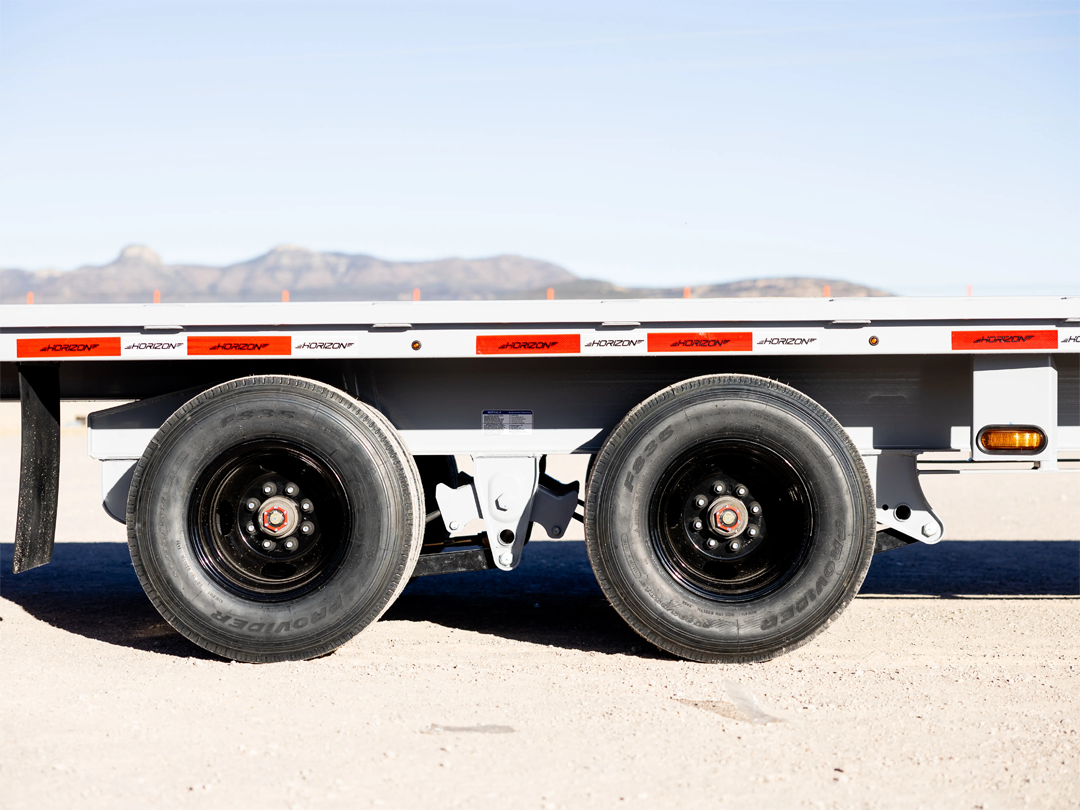

RUNNING GEAR
TIRES:
- TYPE:
- Radial Tires
- SIZE:
- ST235/80R16, Dual
- PLY:
- 10
- RATING:
- 3,080 lbs
- RIMS:
- 16" Black Mod Wheels
SUSPENSION:
- AXLE TYPE:
- 10K Electric Brake Auto-Adjust Dual Oil Bath Spring Axles
- BOLT PATTERN:
- 8 on 6.5"
- AXLE COUNT:
- 2
- SUSPENSION TYPE:
- Spring
- AXLE WARRANTY:
- 5 Year Spring Axle Warranty
ELECTRICAL AND LIGHTING
BATTERY AND CHARGING:
- BATTERY:
- 2 - Interstate 27 Deep Cycle Batteries
- WIRING HARNESS:
- All-Weather Wiring Harness (7-Way RV)
- FRAME WIRING:
- Double Insulated Wiring Harness
LIGHTING:
- LIGHTS:
- DOT Approved TecNiq LED Lights
SAFETY:
- REFLECTIVE TAPE:
- 3M DOT Compliant Reflective Tape
